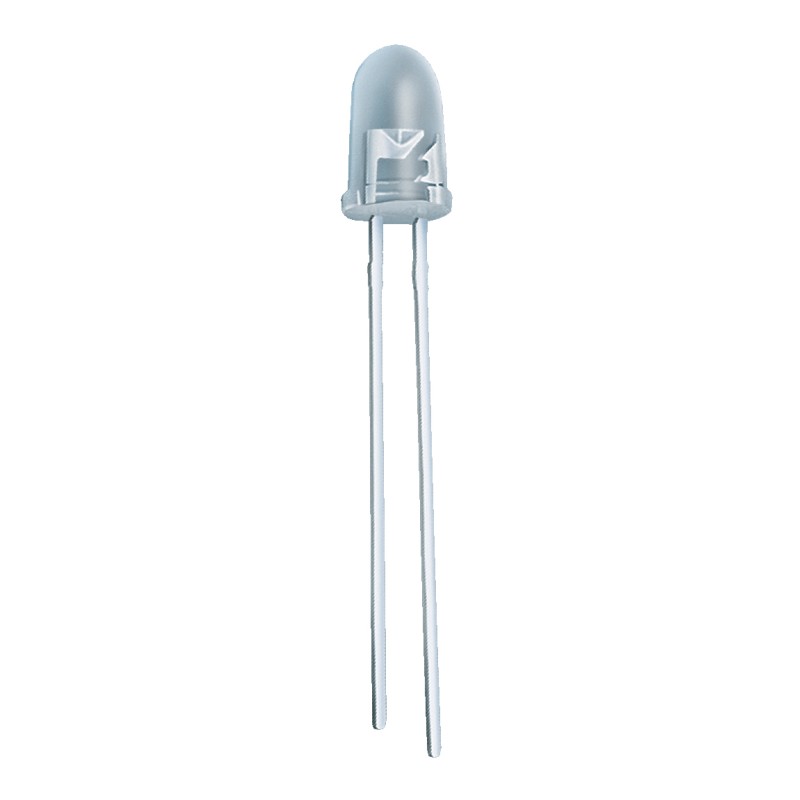

383-2SDRC/S530-A3

$0.50
Tax excluded

Description

The series is specially designed for applications requiring higher brightness The led lamps are available with different colors, intensities..

Features

  • Choice of various viewing angles Available on tape and reel. Reliable and robust The product itself will remain within RoHS compliant version. Compliance with EU REACH Compliance Halogen free. (Br <900 ppm, Cl<900 ppm, Br+Cl <1500 ppm).

Applications

  • Tv Set Monitor Telephone Computer
383-2SDRC/S530-A3
Color
Deep Red
Lens Color
Transparent
Luminous Intensity
1000mcd
Forward Current
20mA
Forward Voltage
1.7V
Maximum Voltage
2.4V
Pulsed Forward Current
6mA
Beam Angle
6°
Package
5mm Round
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
