339-1UYSYGW/S530-A3

$0.50
Tax excluded

Description

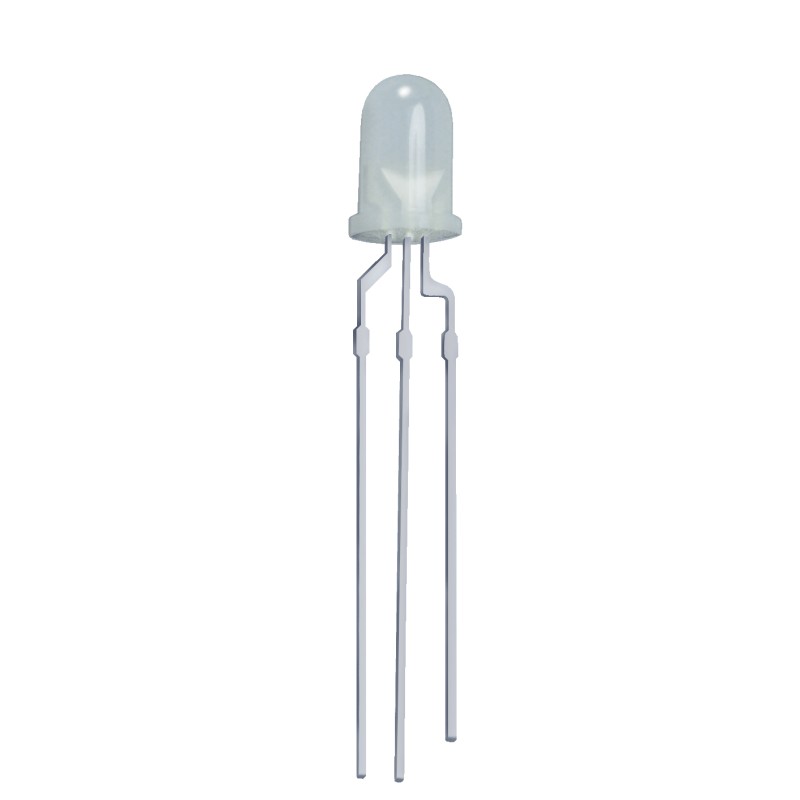

The 339-1 LED lamp contain two integral chips and is available as both bicolor and bipolar types. The Brilliant Yellow and Brilliant Yellow Green light is emitted by diodes of AlGaInP and AlGaInP Type of bipolar lamps are both White Clear and Color Clear while the bicolor are White Diffused.

Features

  • Two chips are matched for uniform light output, wide viewing angle
  • Long life-solid state reliability
  • I.C. compatible/Low power consumption
  • The product itself will remain within RoHS compliant version
  • Compliance with EU REACH
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Tv Set
  • Monitor
  • Telephone
  • Computer
339-1UYSYGW/S530-A3
Color
Yellow / Yellow-Green
Lens Color
Transparent
Luminous Intensity
63 / 32mcd
Forward Current
20mA
Maximum Voltage
2.4 / 2.4V
Beam Angle
70°
