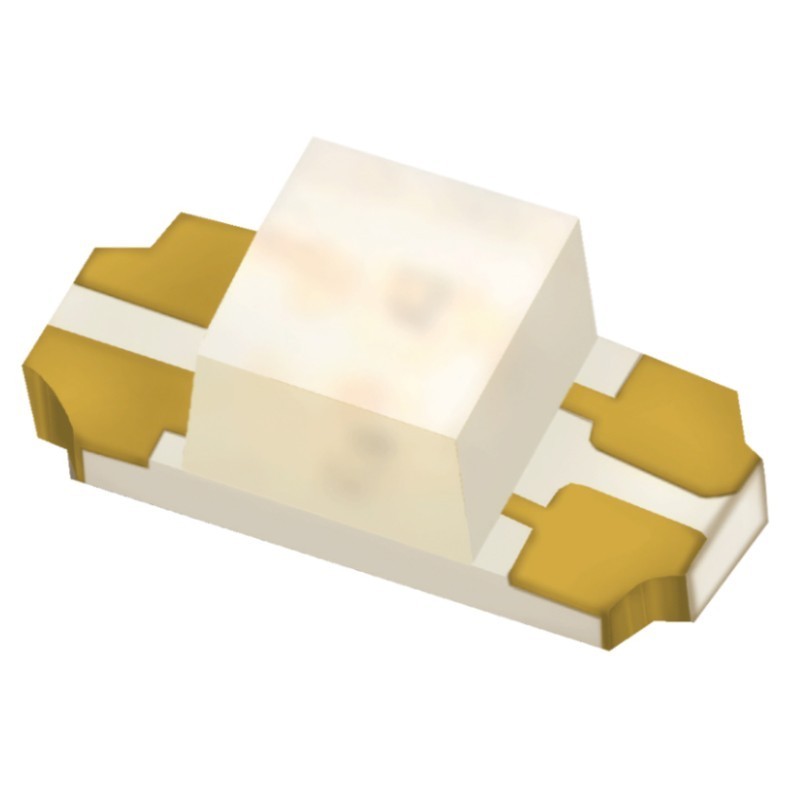

23-22B/S2BHC-C30/2A
$0.15
Tax excluded
23-22B/S2BHC-C30/2A
- Color
- Orange / Blue
- Lens Color
- Water Clear
- Luminous Intensity
- 11.5 / 11.5mcd
- Forward Current
- 5mA
- Forward Voltage
- 2.25/3.5V
- Maximum Voltage
- 2.25 / 3.5V
- Pulsed Forward Current
- 60/100mA
- Beam Angle
- 130°
- Package
- 3212
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- Reverse Mount
- Thickness
- 1.1mm
