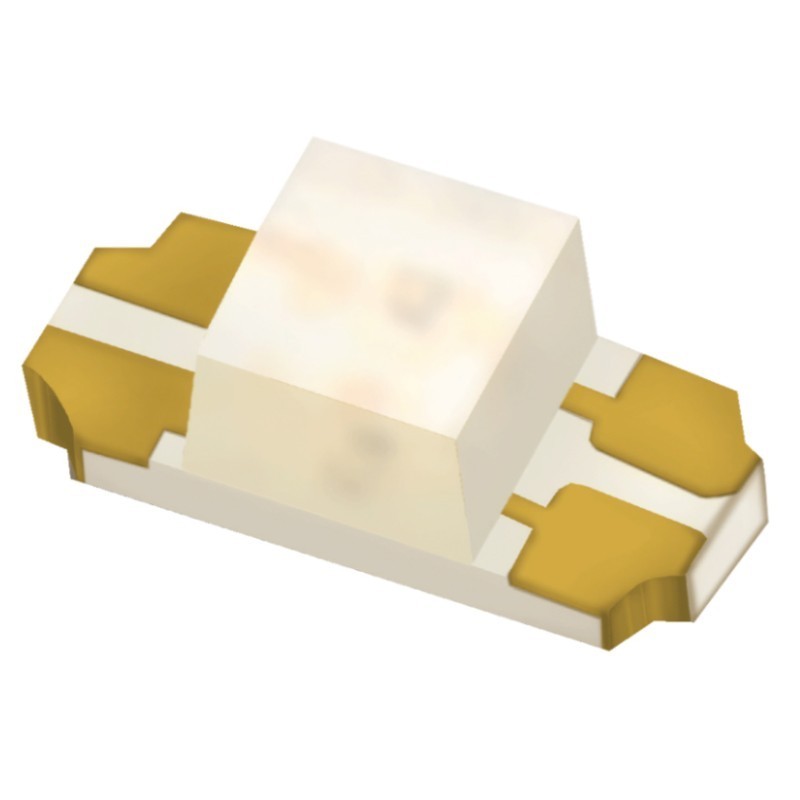

23-22B/R7G6C-A30/2T
$0.12
Tax excluded
23-22B/R7G6C-A30/2T
- Color
- Dark Red / Yellow-Green
- Lens Color
- Water Clear
- Luminous Intensity
- 18 / 14.5mcd
- Forward Current
- 20mA
- Forward Voltage
- 1.7/1.7V
- Maximum Voltage
- 2.4 / 2.4V
- Pulsed Forward Current
- 60/60mA
- Beam Angle
- 130°
- Package
- 3212
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- Reverse Mount
- Thickness
- 1.1mm
