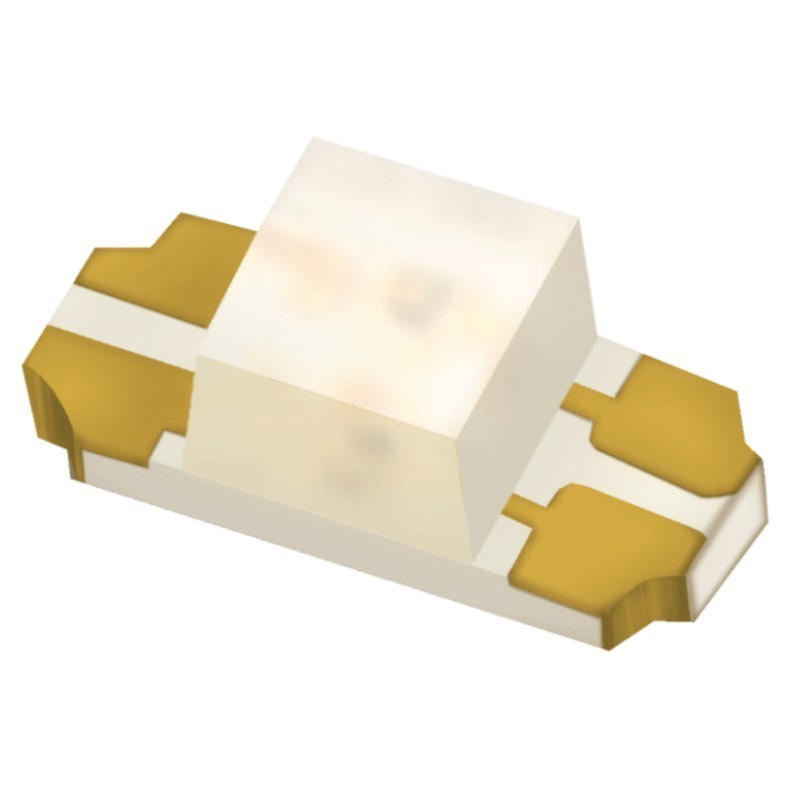

EASR3212RGA1

$0.10
Tax excluded

Description

The 23-22B SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications. etc.

Features

  • Package in 8mm tape on 7?diameter reel Compatible with automatic placement equipment Compatible with in

Applications

  • Backlighting In Dashboard And Switch.
  • Telecommunication: Indicator And Backlighting In Telephone And Fax.
  • Flat Backlight For Lcd, Switch And Symbol.
  • General Use.
EASR3212RGA1
Color
Red / Yellow-Green
Lens Color
Water Clear
Luminous Intensity
36 / 22.5mcd
Forward Current
20mA
Forward Voltage
2.4/2.4V
Maximum Voltage
2.4 / 2.4V
Pulsed Forward Current
60/60mA
Beam Angle
130°
Package
3212
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 90°C
Emission Direction
Reverse Mount
Thickness
1.1mm
