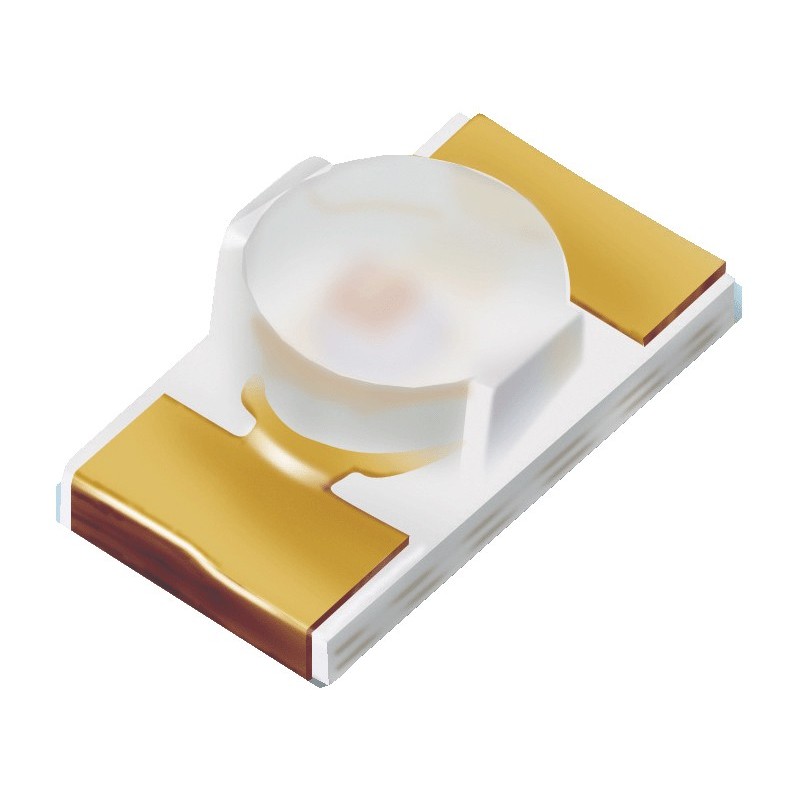

24-21UYOC/S530-A2/TR8

$0.30
Tax excluded

Description

The 24-21 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications. etc.

Features

  • Package in 8mm tape on 7〞diameter reel.
  • Compatible with automatic placement equipment.
  • Compatible with infrared and vapor phase reflow solder process.
  • Mono-color type.
  • Pb-free.
  • The product itself will remain within RoHS compliant version.
  • Compliance with EU REACH.
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

  • Backlighting In Dashboard And Switch.
  • Telecommunication: Indicator And Backlighting In Telephone And Fax.
  • F...
24-21UYOC/S530-A2/TR8
Color
Orange
Luminous Intensity
16mcd
Forward Current
20mA
Maximum Voltage
2.4V
Beam Angle
130°
Emission Direction
Reverse Mount
