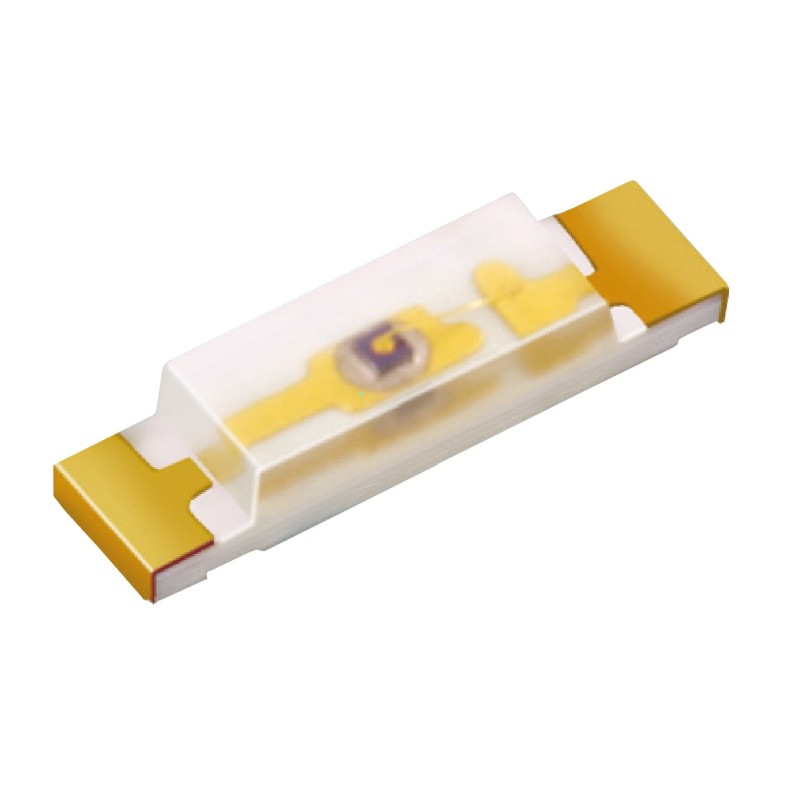

EASR3216BA2
$0.10
Tax excluded
EASR3216BA2
- Color
- Blue
- Lens Color
- Water Clear
- Luminous Intensity
- 36mcd
- Forward Current
- 20mA
- Forward Voltage
- 2.75V
- Maximum Voltage
- 3.65V
- Pulsed Forward Current
- 100mA
- Beam Angle
- 130°
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- Reverse Mount
- Thickness
- 0.6mm
