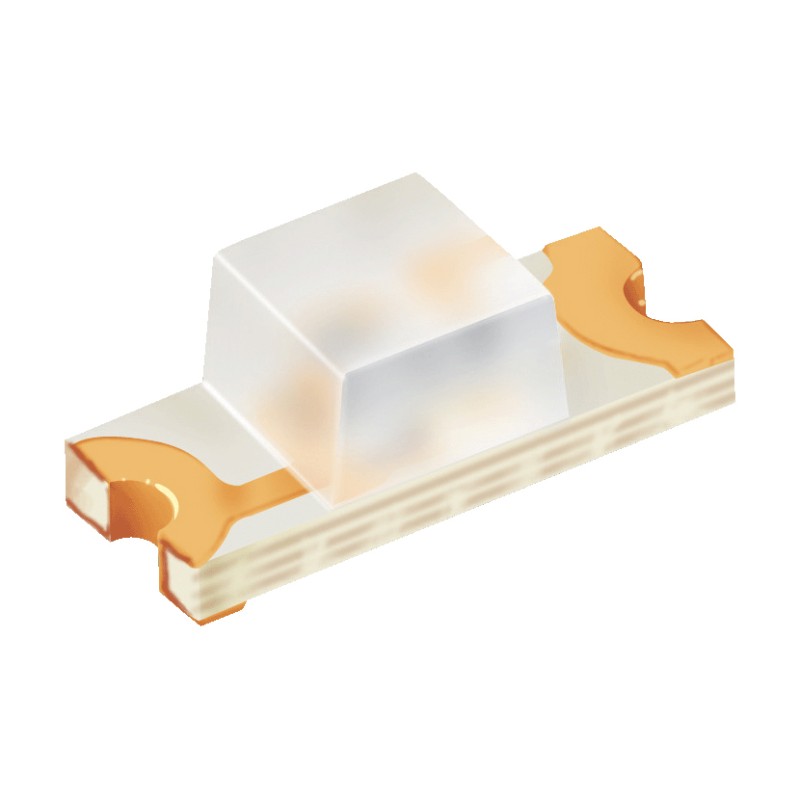

23-21B/T7D-KT1U1F/2A/EU
$0.16
Tax excluded
23-21B/T7D-KT1U1F/2A/EU
- Color
- White
- Lens Color
- Yellow Diffused
- Luminous Intensity
- 285mcd
- Forward Current
- 20mA
- Forward Voltage
- 2.7V
- Maximum Voltage
- 3.5V
- Pulsed Forward Current
- 100mA
- Beam Angle
- 140°
- Package
- 3212
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- Reverse Mount
- Thickness
- 1.1mm
