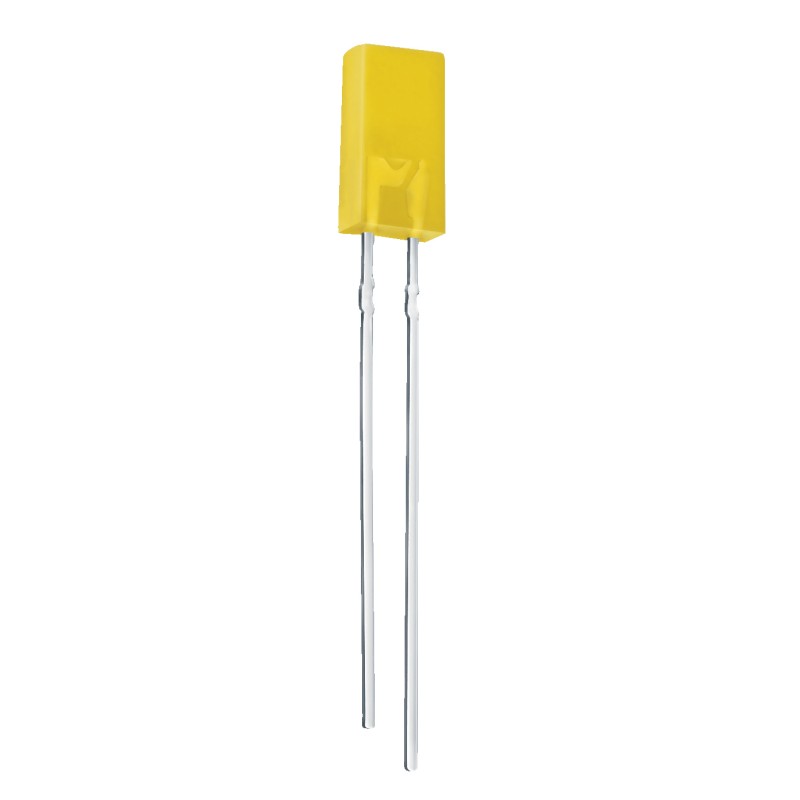

1533SURD/S530-A3

$0.50
Tax excluded

Description

The series is specially designed for applications requiring higher brightness The led lamps are available with different colors, intensities..

Features

  • Choice of various viewing angles Available on tape and reel. Reliable and robust The product itself will remain within RoHS compliant version. Compliance with EU REACH Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Tv Set Monitor Telephone Computer
1533SURD/S530-A3
Color
Red
Lens Color
Red Diffused
Luminous Intensity
10mcd
Forward Current
20mA
Forward Voltage
1.7V
Maximum Voltage
2.4V
Pulsed Forward Current
170mA
Beam Angle
170°
Package
Rectangle
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
