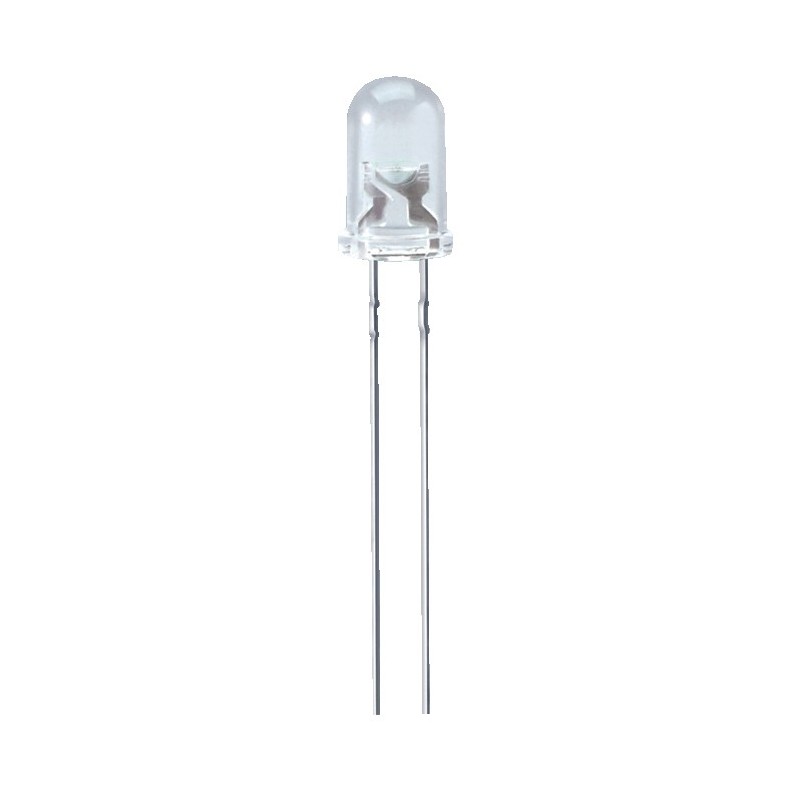

EALP05RDEWA9

$0.50
Tax excluded

Description

The series is designed for application required high luminous intensity. The phosphor filled in the reflector converts the blue emission of InGaN chip to warm white.

Features

  • Popular 5mm package High luminous power Typical chromaticity coordinates x=0.30, y=0.29 according to CIE1931 Bulk, available taped on reel. The product itself will remain within RoHS compliant version Compliance with EU REACH Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Message Panels Optical Indicators Backlighting Marker Lights
EALP05RDEWA9
Lens Color
Water Clear
Forward Current
20mA
Forward Voltage
2.8V
Pulsed Forward Current
100mA
Beam Angle
20 deg.
Package
5mm Round
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
