519-1SURSYGW/S530-A3

$0.50
Tax excluded

Description

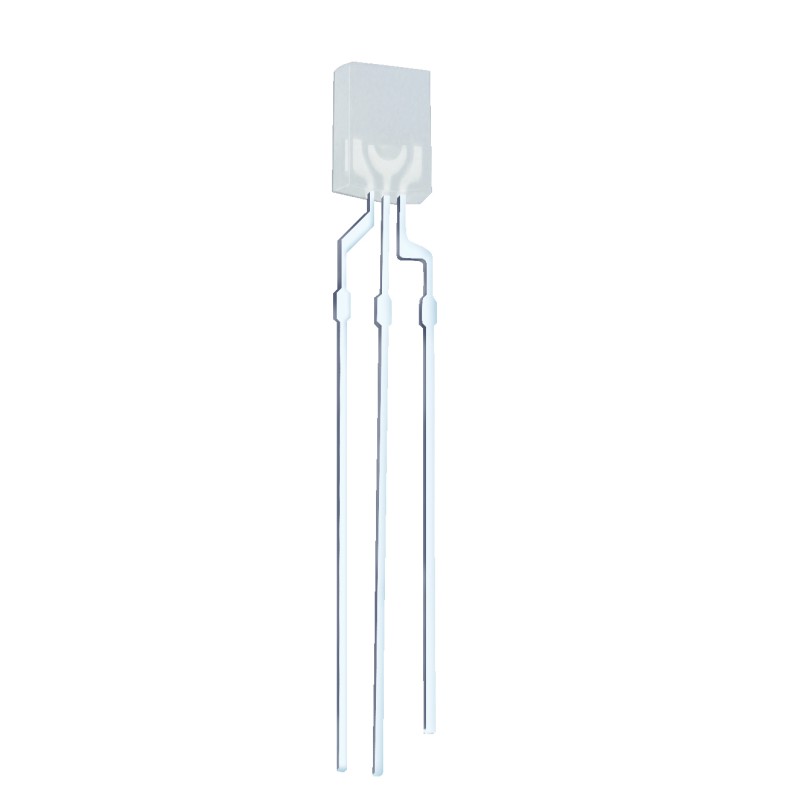

The519-1LED lamp contain two integral chips and is available as both bicolor and bipolar types. The Brilliant Red and Brilliant Yellow Green light is emitted by diodes of AlGaInP and AlGaInP Type of bipolar lamps are both White Diffused and Color Diffused while the bicolor are White Diffused.

Features

  • Two chips are matched for uniform light output, wide viewing angle
  • Long life-solid state reliability
  • I.C. compatible/Low power consumption
  • Pb free
  • The product itself will remain within RoHS compliant version

Applications

  • Tv Set
  • Monitor
  • Telephone
  • Computer
519-1SURSYGW/S530-A3
Color
Red / Yellow-Green
Lens Color
Transparent
Luminous Intensity
6.3 / 2.4mcd
Forward Current
20mA
Maximum Voltage
2.4 / 2.4V
Beam Angle
180°
