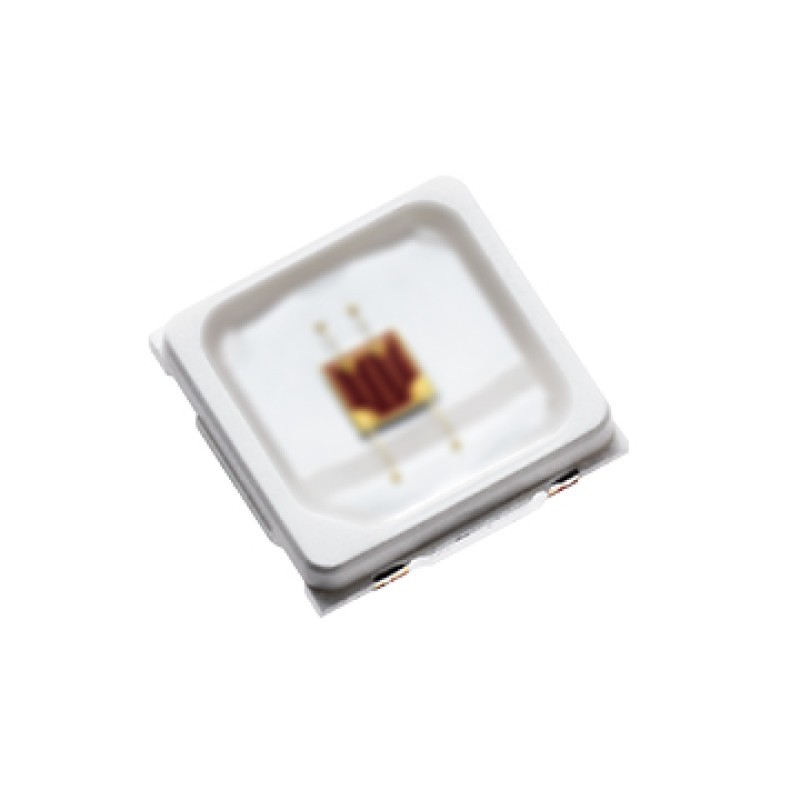

XI3030P/B3C-D5060T2T625312Z15/2N
$0.50
Tax excluded
Description
The Everlight XI3030P package has high efficacy, mid power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications.
Features
- Top view white LED Wide viewing angle Pb-free RoHS compliant
Applications
- Decorative And Entertainment Lighting Agriculture Lighting General Use
XI3030P/B3C-D5060T2T625312Z15/2N
- Color
- Royal Blue
- Forward Current
- 150mA
- Forward Voltage
- 3.1V
- Maximum Voltage
- 3.1V
- Package
- 3030
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 0.63mm
- Peak Wavelength
- 450nm
