EADCF040GA2
$1.48
Tax excluded
Description

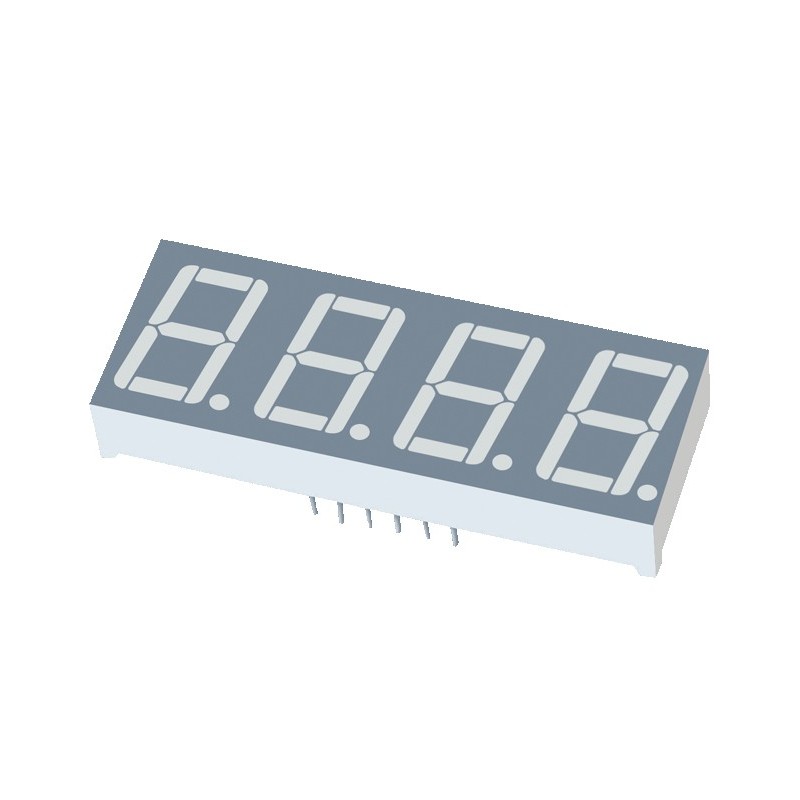

The ELF-416SYGWA/S530-E3 is a 10.0mm (0.4") digit height seven-segment display. The display provides excellent reliability in bright ambient light. The device is made with white segments and gray surface.
Features
- Industrial standard size. Low power consumption. Categorized for luminous intensity. Pb free and RoHS compliant.
Applications
- Home Appliances Instrument Panels Digital Readout Displays
EADCF040GA2
- Color
- Yellow-Green
- Luminous Intensity
- 4mcd
- Forward Current
- 10mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 2.4V
- Pulsed Forward Current
- 60mA
- Package
- 7-Segment Display
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 7mm
- Number of Pins
- 16Pins
- Surface Color
- Gray
