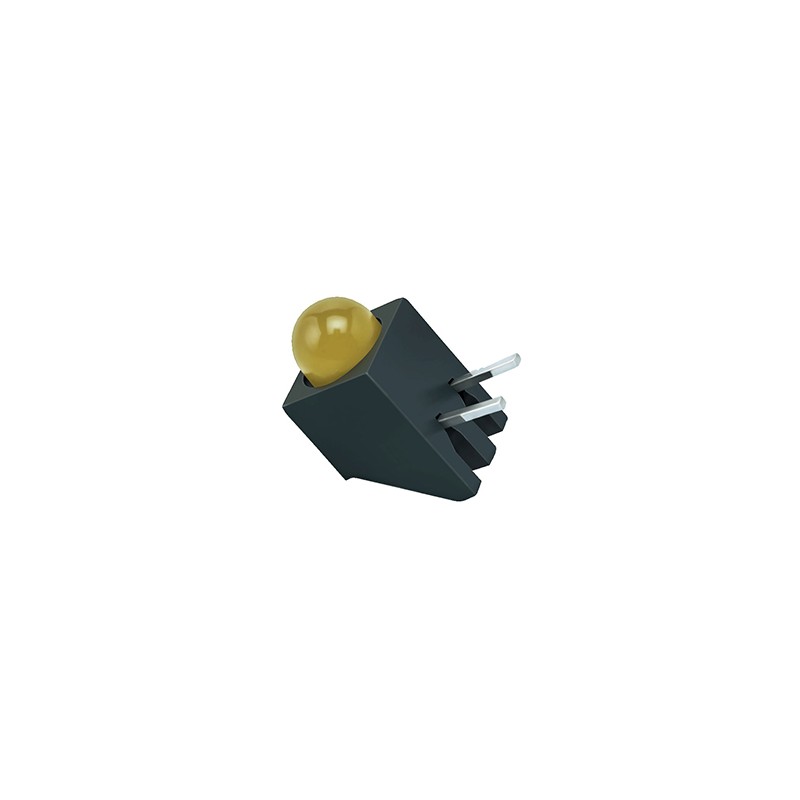

A93B/SDR/S530-A3

$0.65
Tax excluded

Description

ARRAY=Plastic Holder+ Combinations of Lamps. The array will easily mount the applicable lamps on any panel up to.

Features

  • Low power consumption High efficiency and low cost Good control and free combinations on the colors of LED lamps Good lock and easy to assembly. Stackable and easy to assembly Stackable vertically and easy to assembly Versatile mounting on P.C board or panel Stackable horizontally and easy to assembly The product itself will remain within RoHS compliant version Compliance with EU REACH Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Used As Indicators Of Indicating The Degree
  • Functions
  • Positions Etc
  • In Electronic Instruments
A93B/SDR/S530-A3
Color
Deep Red
Lens Color
Red Diffused
Luminous Intensity
63mcd
Forward Current
20mA
Forward Voltage
2.4V
Maximum Voltage
2.4V
Pulsed Forward Current
50mA
Beam Angle
50°
Mounting
Through Hole
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
