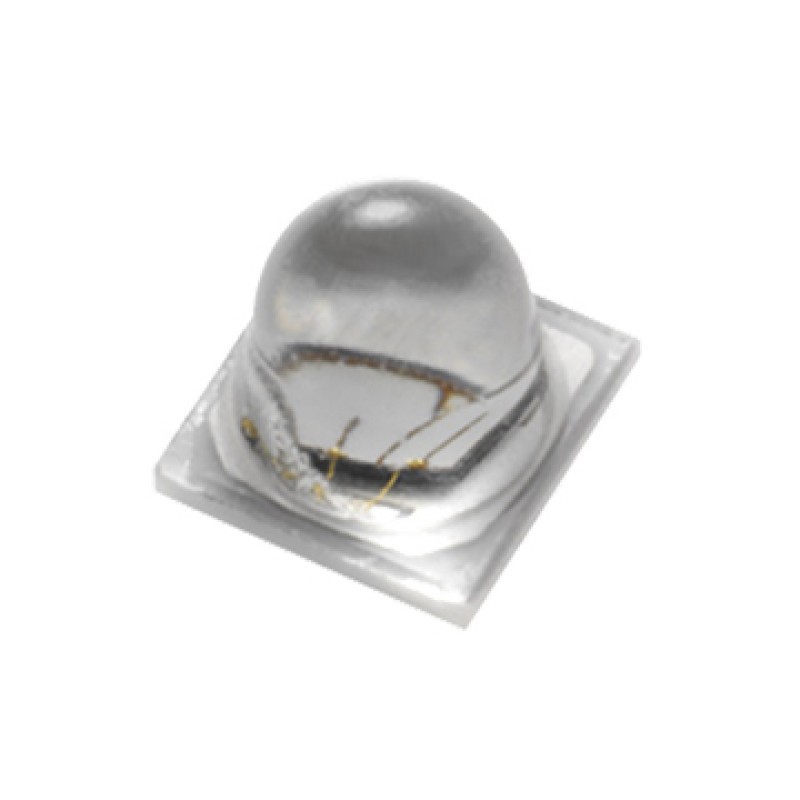

ELUA3535OG5-P0010U23040500-VD1M
$6.80
Tax excluded
Description
This part Series product series is a ceramic based LED with high quality and reliability that suitable for UV application.
Features
- High power UVA LED Dimension 3.5mm* 3.5mm* 3.5mm ESD protection up to 8KV RoHS compliant
Applications
- Uv Sterilization System Uv Photo-Catalyst Uv Sensor Light
ELUA3535OG5-P0010U23040500-VD1M
- Color
- UVA
- Forward Current
- 500mA
- Forward Voltage
- 2.95V
- Maximum Voltage
- 4.0V
- Pulsed Forward Current
- 1000mA
- Beam Angle
- 50°
- Package
- 3535
- Mounting
- SMD
- Operating Temperature
- -40°C to 110°C
- Storage Temperature
- -40°C to 110°C
- Thickness
- 3.5mm
- Peak Wavelength
- 405nm
