67-21S/KK5C-3M6565X0Y02530U6/2T/EU

$0.50
Tax excluded

Description

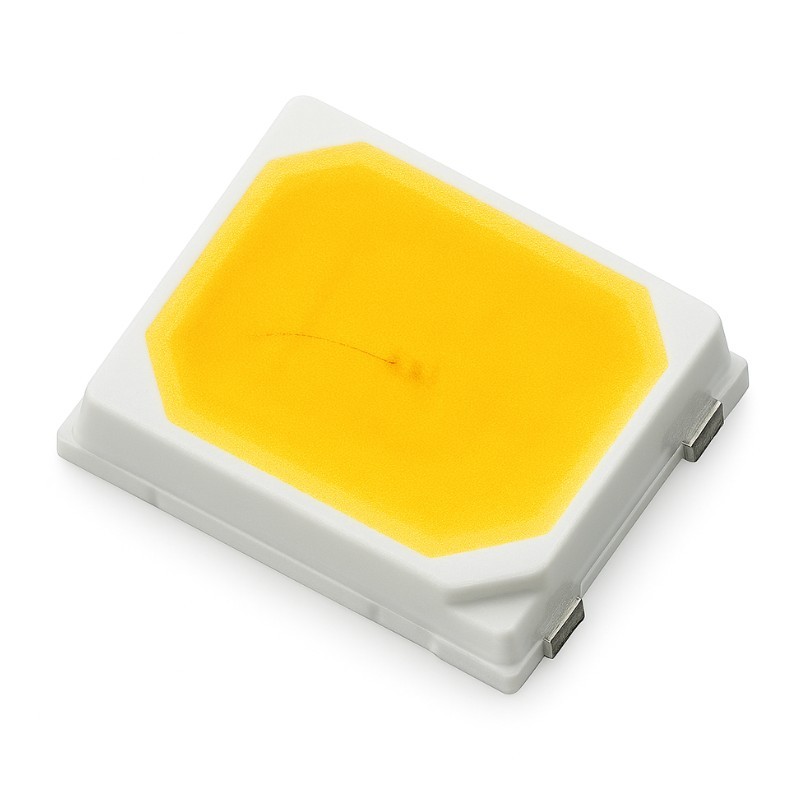

The Everlight 67-21S package has high efficacy, high CRI, low power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications.

Features

  • PLCC-2 package Top view white LED High luminous intensity output Wide viewing angle Pb-free ANSI Binning The product itself will remain within RoHS compliant version. Compliance with EU REACH. Compliance Halogen Free .(Br<900ppm,CI<900ppm,Br+CI<1500ppm)

Applications

  • General Lighting Decorative And Entertainment Lighting Indicators Illumination Switch Lights
67-21S/KK5C-3M6565X0Y02530U6/2T/EU
Color
White
Forward Current
65mA
Forward Voltage
3V
Maximum Voltage
3V
Pulsed Forward Current
300mA
Beam Angle
120 deg.
Package
2835
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Thickness
0.7mm
Luminous Flux
30lm
CCT
6500 K
CRI
80
CRI (Min)
80CRI
