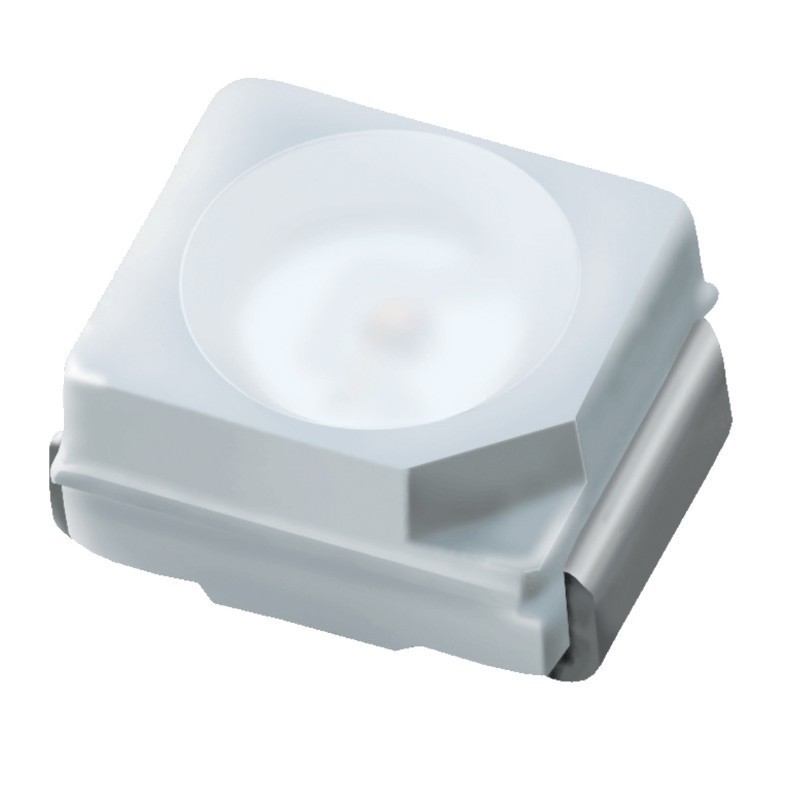

67-21/GHC-AS2U1B17Z/2T

$0.20
Tax excluded

Features

  • P-LCC-2 package.
  • White package.
  • Optical indicator.
  • Colorless clear window.
  • Wide viewing angle.
  • Suitable for vapor-phase reflow, Infrared reflow and wave solder processes.
  • Computable with automatic placement equipment.
  • Available on tape and reel (8mm Tape).
  • Pb-free.
  • The product itself will remain within RoHS compliant version.
  • Compliance with EU REACH.
  • Compliance Halogen Free .(Br<900ppm,CI<900ppm,Br+CI<1500ppm)
  • Precondition: Bases on JEDEC J-STD 020D Level 3 Descriptions The 67-21 series is available in soft orange, green,blue and yellow. Due to the package design, the LED has wide viewing angle and optimized light coupling by inter reflector. This feature makes the TOP View LEDs ideal for light pipe application. The low current requirement makes this device ideal for portable equipment or any other application where power is at a premi...
67-21/GHC-AS2U1B17Z/2T
Color
Green
Luminous Intensity
225mcd
Forward Current
10mA
Maximum Voltage
3.5V
Beam Angle
120°
Emission Direction
TopView
