67-21S/KK4C-3H6565N3P32833Z6/2T/EU

$1.00
Tax excluded

Description

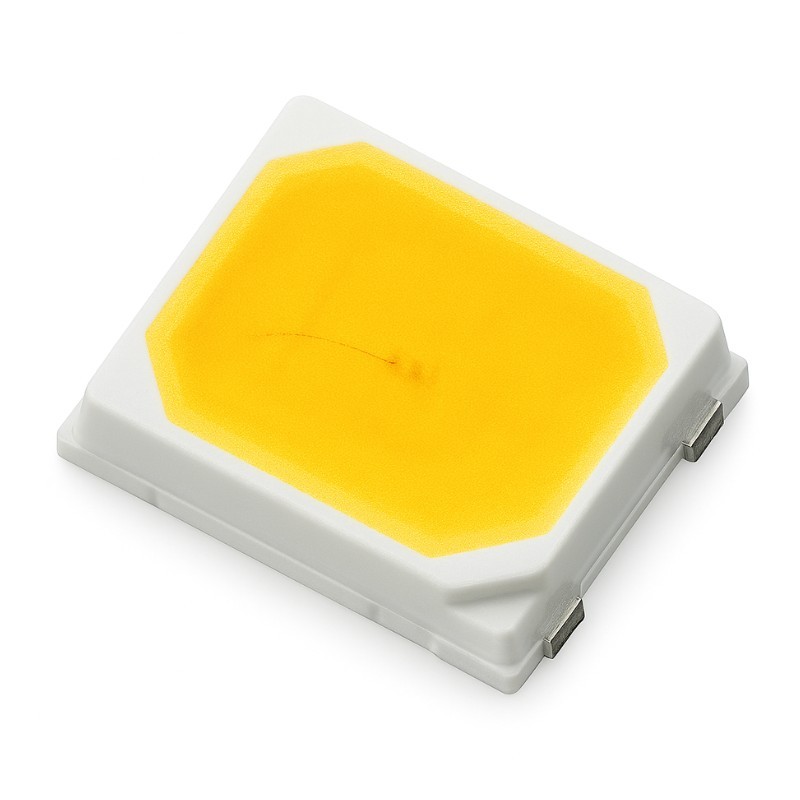

The Everlight 67-21S package has high efficacy, high CRI, low power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications.

Features

  • PLCC-2 package Top view white LED High luminous intensity output Wide viewing angle Pb-free RoHS compliant ANSI Binning

Applications

  • General Lighting Decorative And Entertainment Lighting Indicators Illumination Switch Lights
67-21S/KK4C-3H6565N3P32833Z6/2T/EU
Color
White
Forward Current
60mA
Forward Voltage
3.3V
Maximum Voltage
3.3V
Pulsed Forward Current
100mA
Beam Angle
120 deg.
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Thickness
0.7mm
Luminous Flux
24lm
CCT
6500 K
CRI
80
CRI (Min)
80CRI
