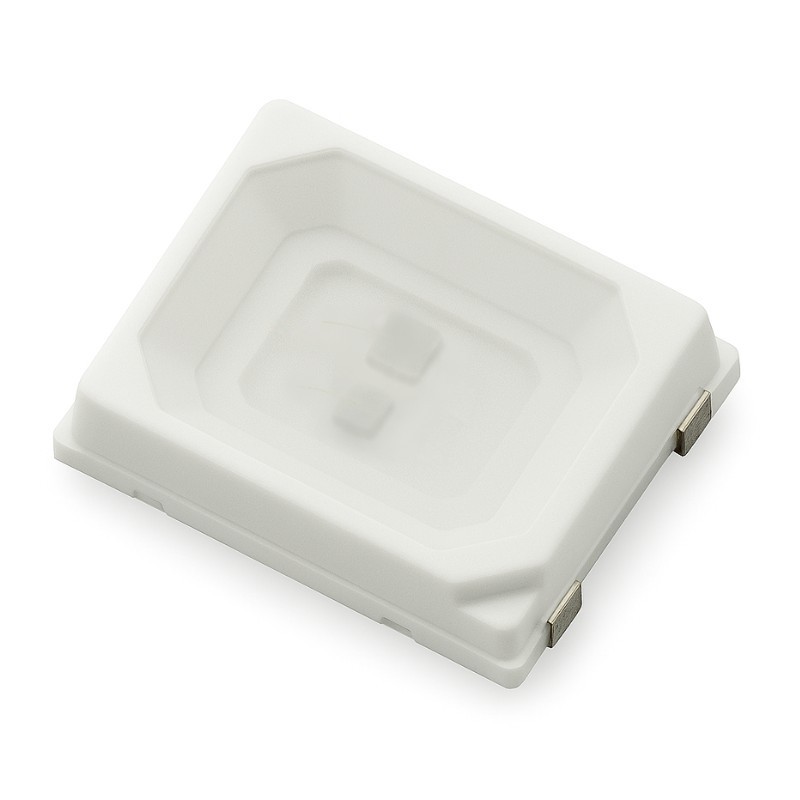

67-22S/B2C-D6075D4D73037Z6/2T
$0.07
Tax excluded
Description
The Everlight 67-22S package has high efficacy, middle power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting applications.
Features
- PLCC-2 package Top view Blue LED Wide viewing angle Pb-free RoHS compliant
Applications
- Decorative And Entertainment Lighting Agriculture Lighting General Use
67-22S/B2C-D6075D4D73037Z6/2T
- Color
- Blue
- Lens Color
- Water Clear
- Forward Current
- 60mA
- Forward Voltage
- 3.0V
- Maximum Voltage
- 3.7V
- Pulsed Forward Current
- 120mA
- Beam Angle
- 120°
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Emission Direction
- TopView
- Thickness
- 0.7mm
