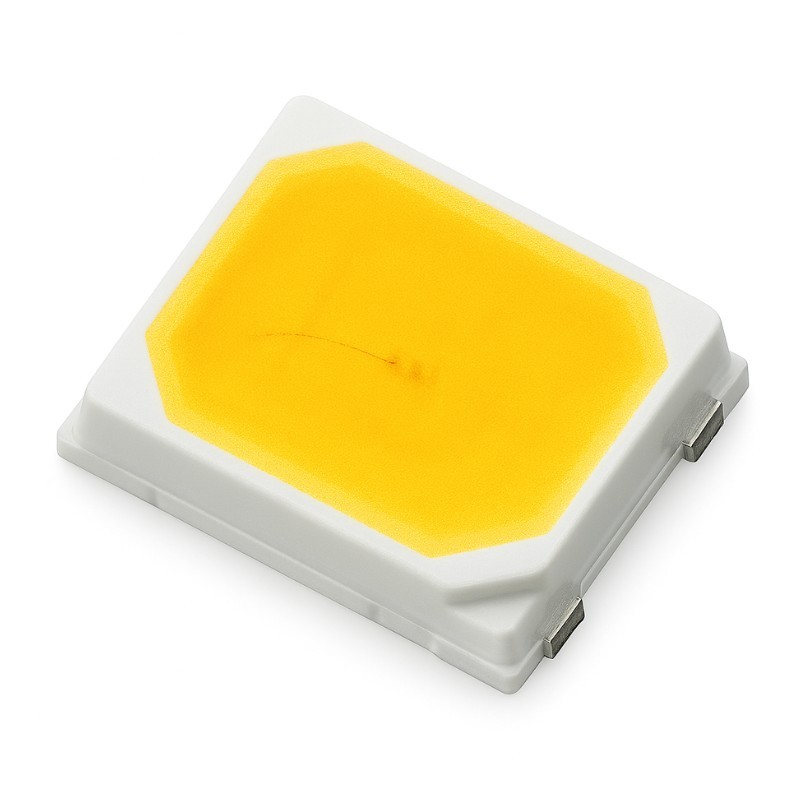

67-22ST/KK6C-3M5050X3Y32530U6/2T/EU

$0.50
Tax excluded

Description

The Everlight 67-22ST package has high efficacy, high CRI, low power consumption, wide viewing angle and a compact form factor. These features make this package an ideal LED for all lighting application.

Features

  • PLCC-2 package Top view white LED High luminous intensity output Wide viewing angle High Efficiency Pb-free RoHS compliant ANSI Binning

Applications

  • Decorative And Entertainment Lighting Light Pipe Application Indicator And Backlight In Office And Family Equiptment General Use
67-22ST/KK6C-3M5050X3Y32530U6/2T/EU
Color
White
Forward Current
65mA
Forward Voltage
3V
Maximum Voltage
3V
Pulsed Forward Current
300mA
Beam Angle
120 deg.
Package
2835
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Thickness
0.7mm
Luminous Flux
33lm
CCT
5000 K
CRI
80
CRI (Min)
80CRI
