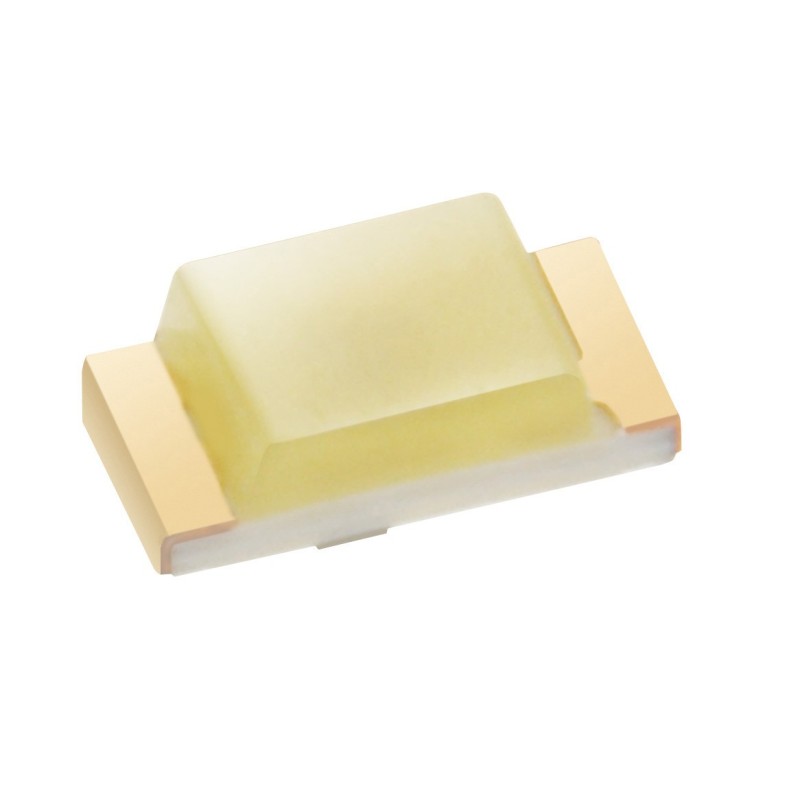

19-213/GHC-YP1Q2QY/5T
$0.20
Tax excluded
19-213/GHC-YP1Q2QY/5T
- Color
- Green
- Lens Color
- Water Clear
- Luminous Intensity
- 45mcd
- Forward Current
- 5mA
- Forward Voltage
- 2.7V
- Maximum Voltage
- 3.2V
- Pulsed Forward Current
- 100mA
- Beam Angle
- 120°
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 0.6mm
