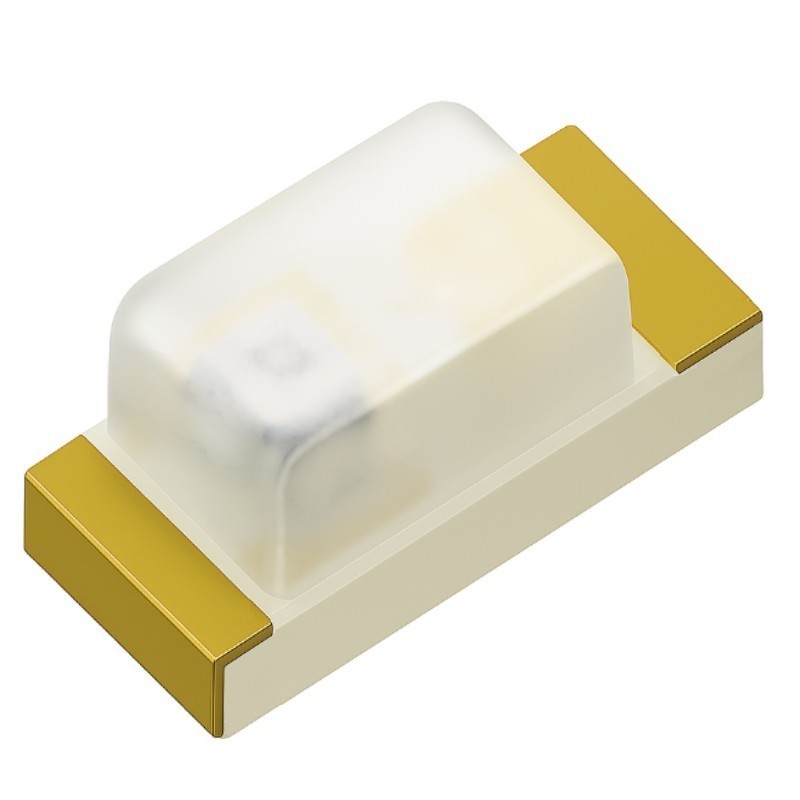

19-21SYGC/S530-E1/4T
$0.50
Tax excluded
19-21SYGC/S530-E1/4T
- Color
- Yellow-Green
- Lens Color
- Water Clear
- Luminous Intensity
- 11mcd
- Forward Current
- 20mA
- Forward Voltage
- 1.7V
- Maximum Voltage
- 2.4V
- Beam Angle
- 100°
- Package
- 1608
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 0.8mm
