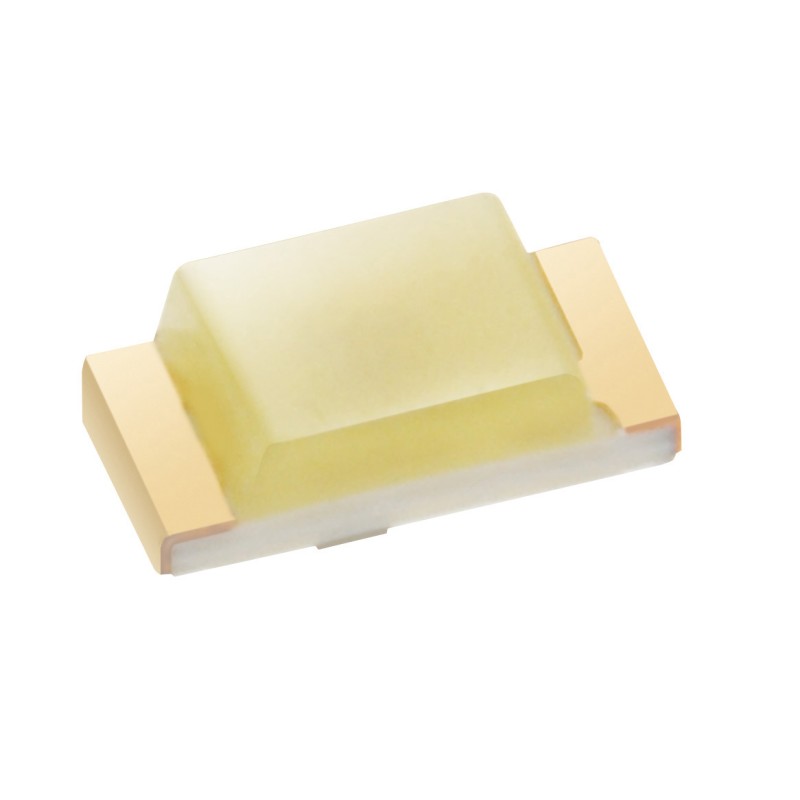

19-213/R6C-AJ2L1AX/5T
$0.50
Tax excluded
19-213/R6C-AJ2L1AX/5T
- Color
- Red
- Lens Color
- Water Clear
- Luminous Intensity
- 5.8mcd
- Forward Current
- 2mA
- Forward Voltage
- 1.55V
- Maximum Voltage
- 2.15V
- Pulsed Forward Current
- 60mA
- Beam Angle
- 120°
- Package
- 1608
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 0.6mm
