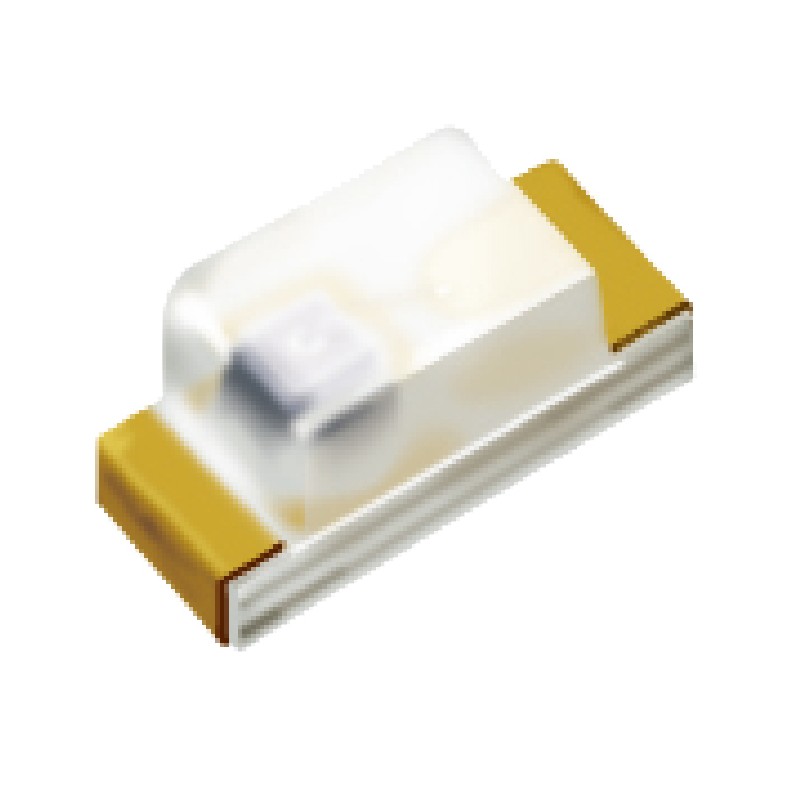

19-21/BHC-ZQ1R2N/4T
$0.12
Tax excluded
19-21/BHC-ZQ1R2N/4T
- Color
- Blue
- Lens Color
- Water Clear
- Luminous Intensity
- 72mcd
- Forward Current
- 20mA
- Forward Voltage
- 2.7V
- Maximum Voltage
- 3.7V
- Pulsed Forward Current
- 100mA
- Beam Angle
- 100°
- Package
- 1608
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 0.8mm
