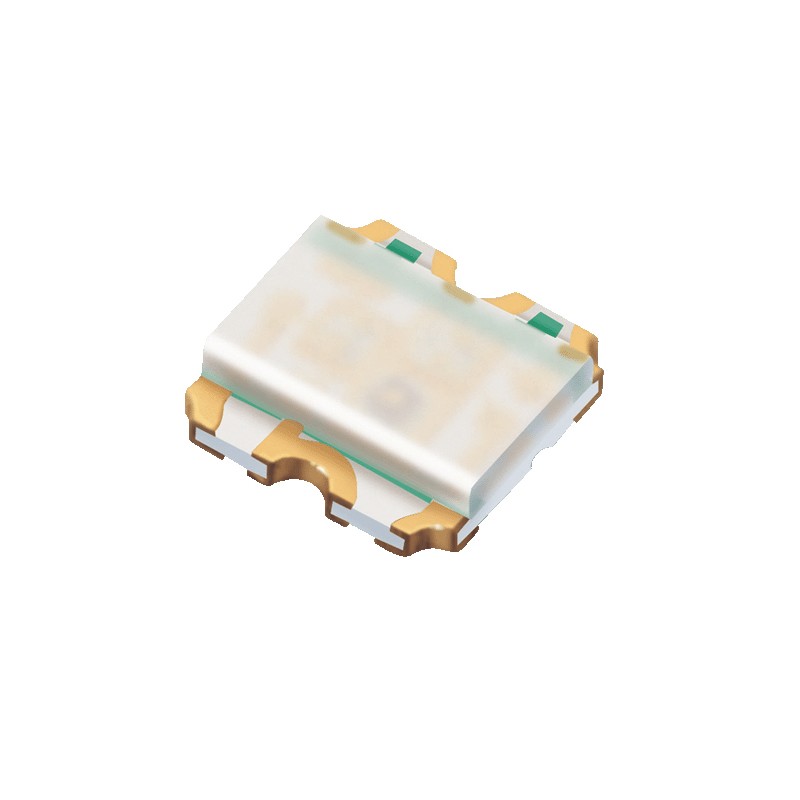

19-337/S2GHBHC-A01/2T
$0.80
Tax excluded
19-337/S2GHBHC-A01/2T
- Color
- Orange / Green / Blue
- Lens Color
- Water Clear
- Luminous Intensity
- 72 / 140 / 28.5mcd
- Forward Current
- 20mA
- Forward Voltage
- 1.7/2.7/2.7V
- Maximum Voltage
- 2.4 / 3.7 / 3.7V
- Pulsed Forward Current
- 60/100/100mA
- Beam Angle
- 120°
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 0.6mm
