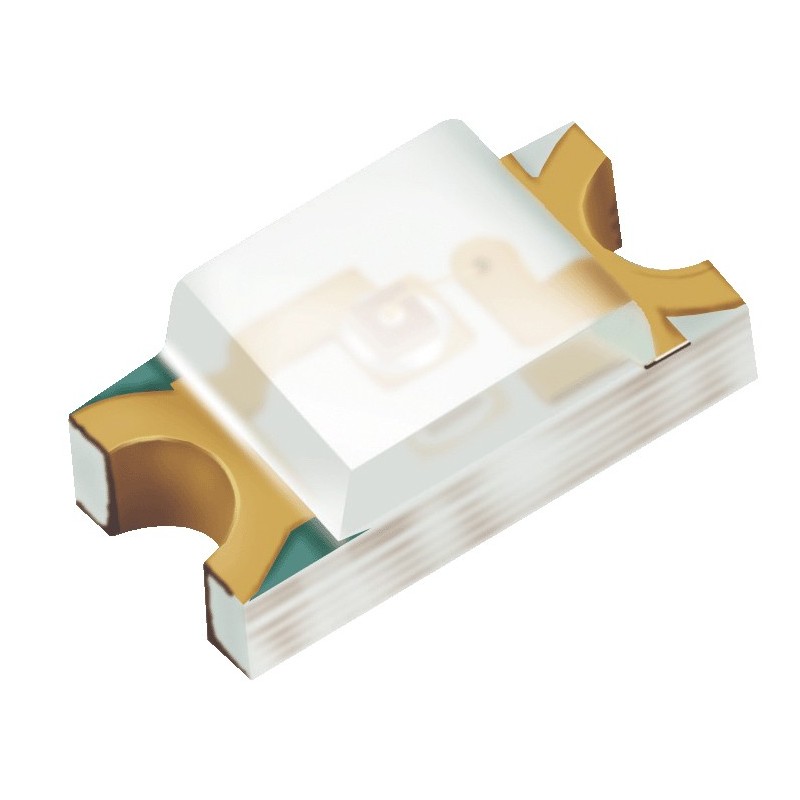

15-21/R8C-AP1Q2B/3T
$0.30
Tax excluded
15-21/R8C-AP1Q2B/3T
- Color
- Deep Red
- Lens Color
- Water Clear
- Luminous Intensity
- 45mcd
- Forward Current
- 20mA
- Forward Voltage
- 1.75V
- Maximum Voltage
- 2.35V
- Pulsed Forward Current
- 60mA
- Beam Angle
- 130°
- Package
- 3215
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 0.5mm
