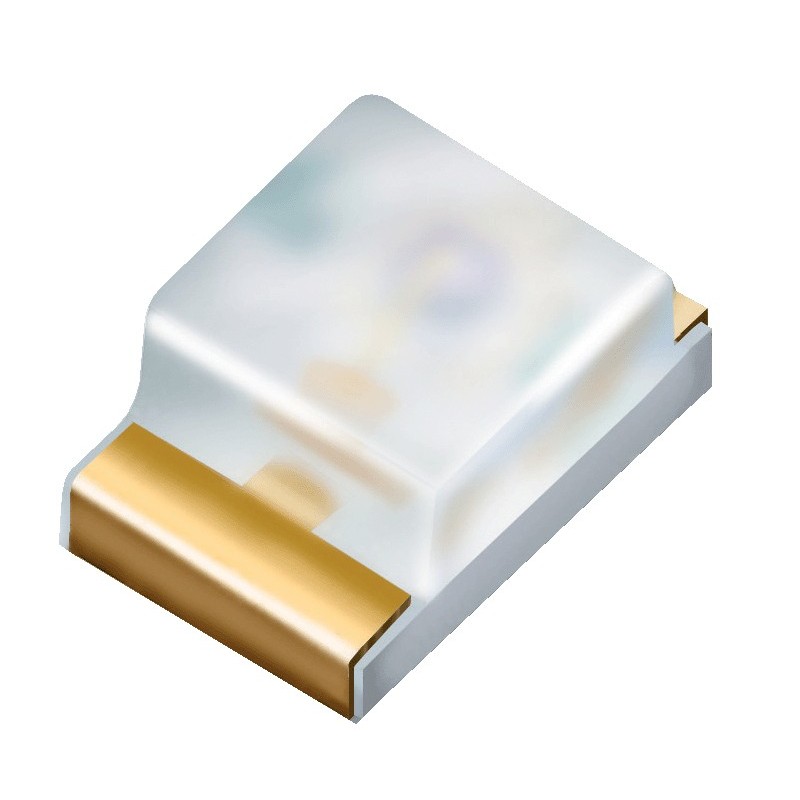

17-215/B7C-AR1S2F/4T
$0.35
Tax excluded
17-215/B7C-AR1S2F/4T
- Color
- Blue
- Lens Color
- Water Clear
- Luminous Intensity
- 112mcd
- Forward Current
- 20mA
- Forward Voltage
- 2.7V
- Maximum Voltage
- 3.5V
- Pulsed Forward Current
- 60mA
- Beam Angle
- 130°
- Package
- 2012
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 0.8mm
