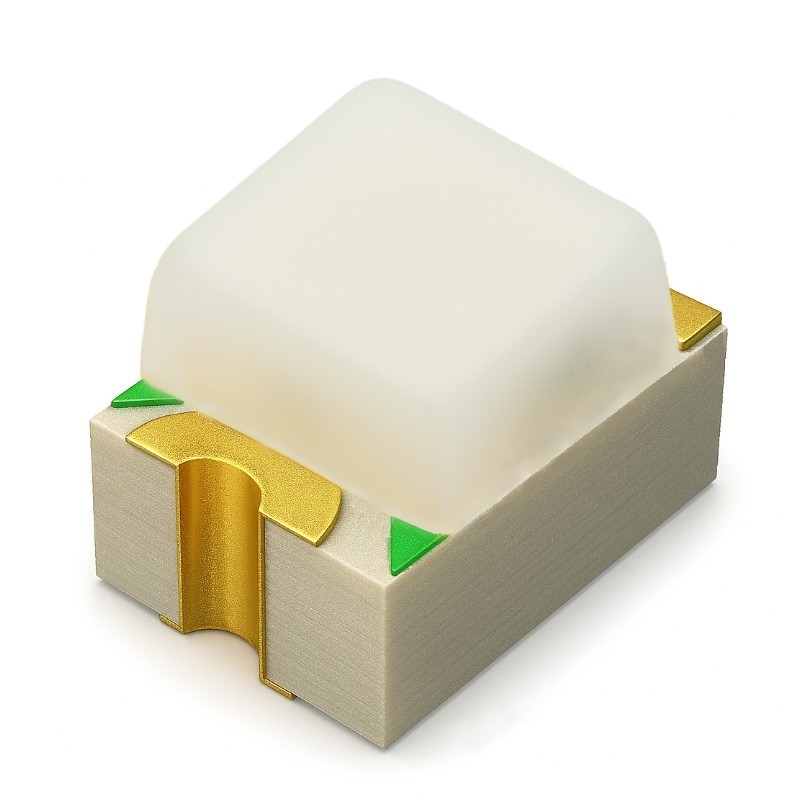

17-21/G6C-AN1P1B/4T
$0.08
Tax excluded
17-21/G6C-AN1P1B/4T
- Color
- Yellow-Green
- Lens Color
- Water Clear
- Luminous Intensity
- 28.5mcd
- Forward Current
- 20mA
- Forward Voltage
- 2.35V
- Maximum Voltage
- 2.35V
- Pulsed Forward Current
- 60mA
- Beam Angle
- 140°
- Package
- 2012
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 1mm
