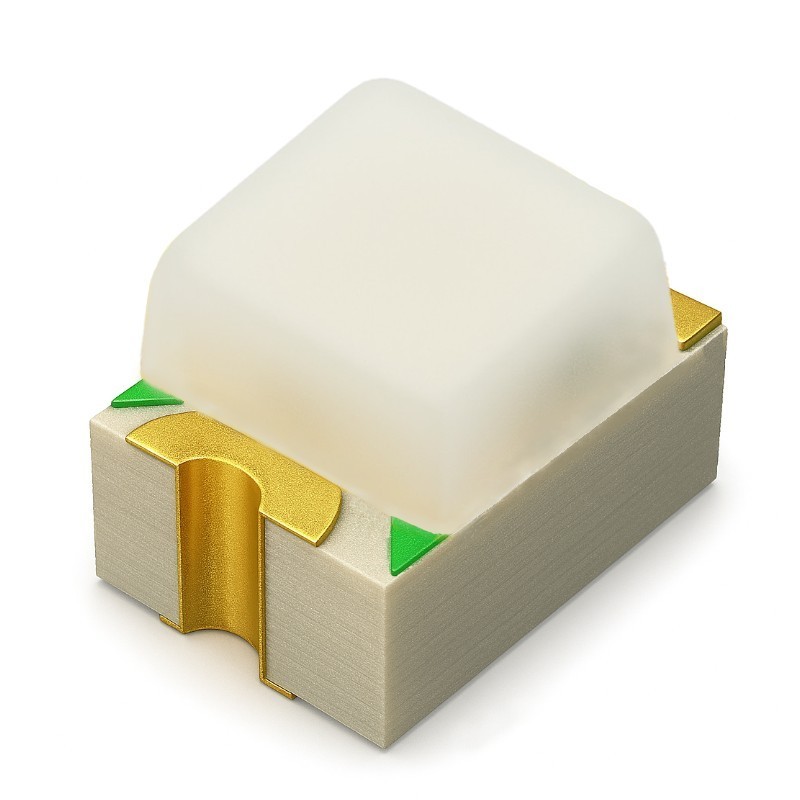

17-21UYC/S530-A2/4T
$0.07
Tax excluded
17-21UYC/S530-A2/4T
- Color
- Yellow
- Lens Color
- Water Clear
- Luminous Intensity
- 15mcd
- Forward Current
- 20mA
- Forward Voltage
- 2V
- Maximum Voltage
- 2.4V
- Pulsed Forward Current
- 60mA
- Beam Angle
- 140°
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 90°C
- Emission Direction
- TopView
- Thickness
- 1mm
