SS511SYGWA/S530-E2/S290

$0.99
Tax excluded

Description

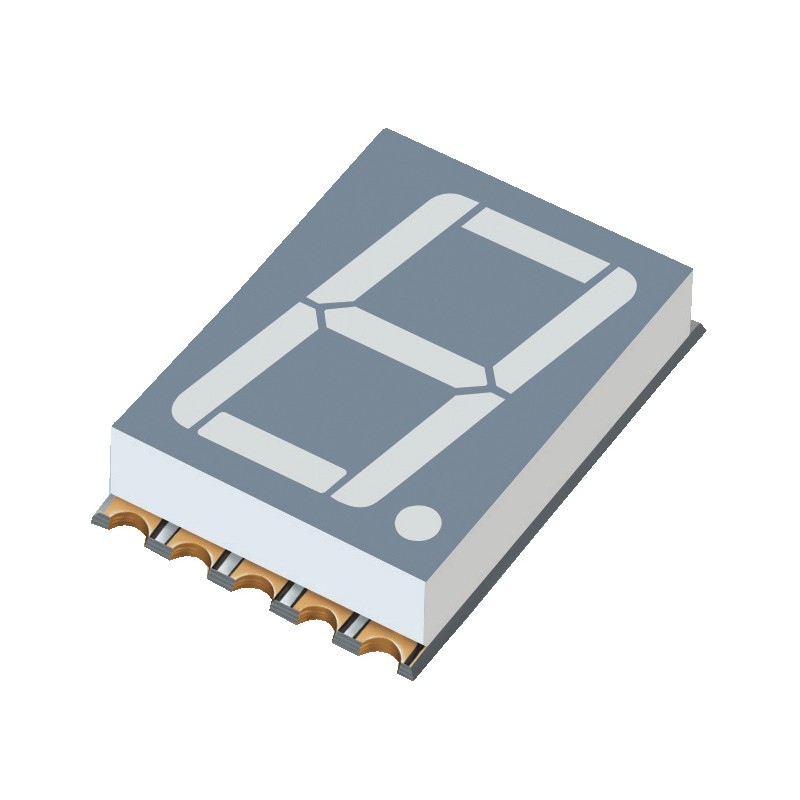

The ELSS-511SYGWA/S530-E2/S290 is a 14.22mm (0.56") digit height seven-segment display. The display provides excellent reliability in bright ambient light. The device is made with white segments and gray surface.

Features

  • Industrial standard size.
  • Packaged in tape and reel for SMT manufacturing.
  • The thickness is thickness than tradition display.
  • Low power consumption.
  • Categorized for luminous intensity.
  • The product itself will remain with RoHS compliant version.
  • Compliance with EU REACH.
  • Compliance with Pb free.(Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm)

Applications

  • Home Appliances
  • Instrument Panels
  • Digital Readout Displays
SS511SYGWA/S530-E2/S290
Color
Yellow-Green
Luminous Intensity
4mcd
Forward Current
10mA
Maximum Voltage
2.4V
Package
7-Segment Display
Surface Color
Gray
