91-21SYGC/S530-E4/TR7

$0.12
Tax excluded

Description

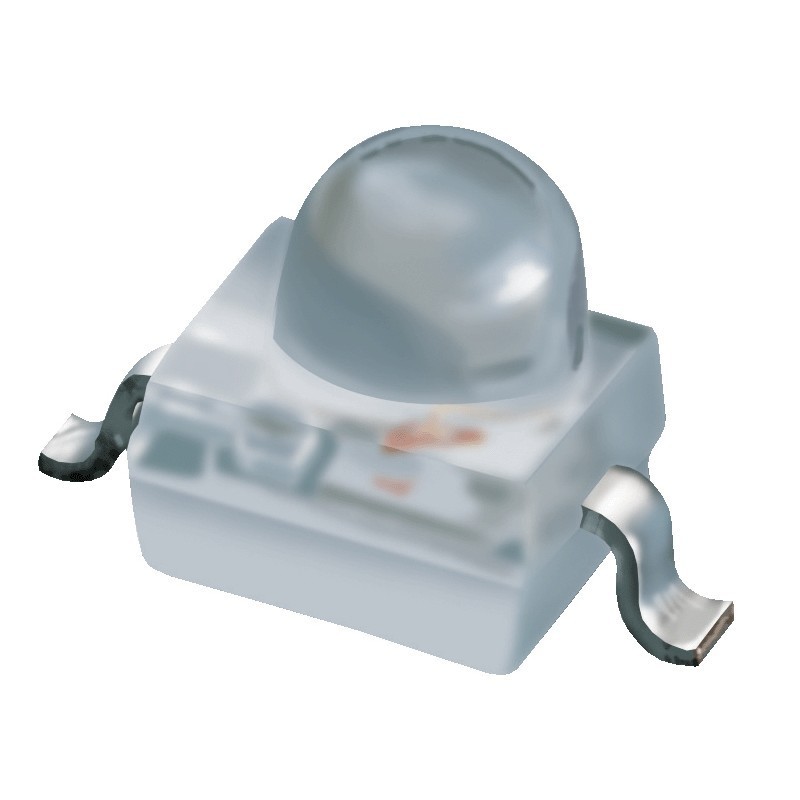

The 91-21 SMD LED is much smaller than leaded components . Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained. Besides, light weight makes them ideal for miniature applications. Furthermore by automation assembly machines the accuracy is anticipated.

Features

  • Package in 12mm tape on 7〞diameter reel.
  • Compatible with automatic placement equipment.
  • EIA Std. package.
  • Mono-color type.
  • Pb-free.
  • The product itself will remain within RoHS compliant version.
  • Compliance with EU REACH.
  • Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Small Indicator For Indoor Applications.
  • Flat Backlight For Lcd, Switches And Symbols.
  • Indic...
91-21SYGC/S530-E4/TR7
Color
Yellow-Green
Luminous Intensity
555mcd
Forward Current
20mA
Maximum Voltage
2.4V
Beam Angle
25°
Emission Direction
TopView
