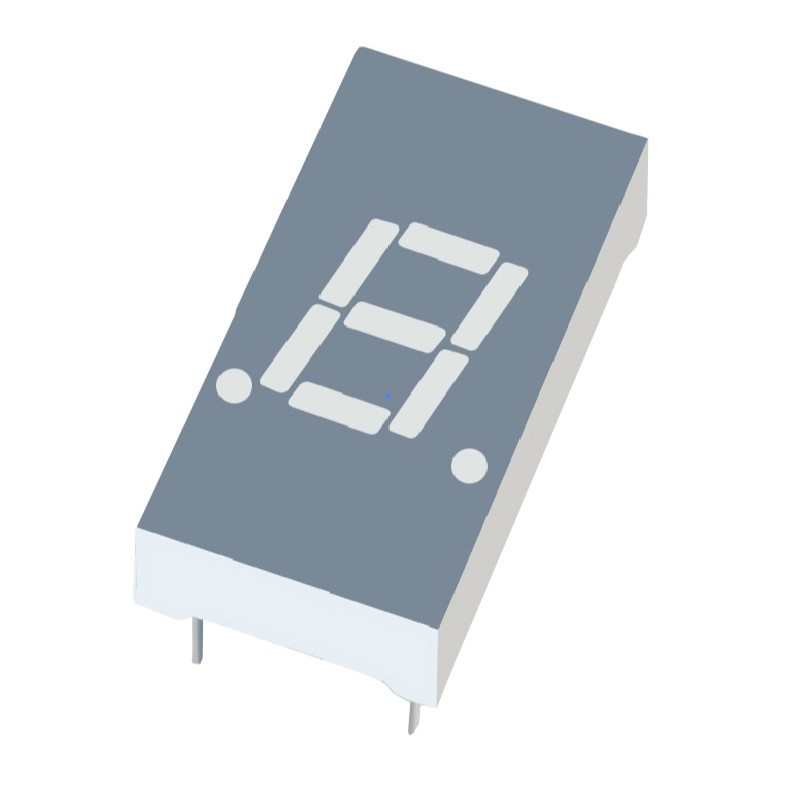

S815SURWA/S530-A3
$4.00
Tax excluded
Description
The ELS-815SURWA/S530-A3 is a 20.4 mm (0.8") digit height seven-segment display. The display provides excellent reliability in bright ambient light. The device is made with white segments and gray surface.
Features
- Industrial standard size. Low power consumption. Categorized for luminous intensity. Pb free and RoHS compliant.
Applications
- Home Appliances Instrument Panels Digital Readout Displays
S815SURWA/S530-A3
- Color
- Red
- Luminous Intensity
- 7.8mcd
- Forward Current
- 10mA
- Forward Voltage
- 2.4V
- Maximum Voltage
- 2.4V
- Pulsed Forward Current
- 60mA
- Package
- 7-Segment Display
- Mounting
- Through Hole
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 8.4mm
- Number of Pins
- 13Pins
- Surface Color
- Gray
