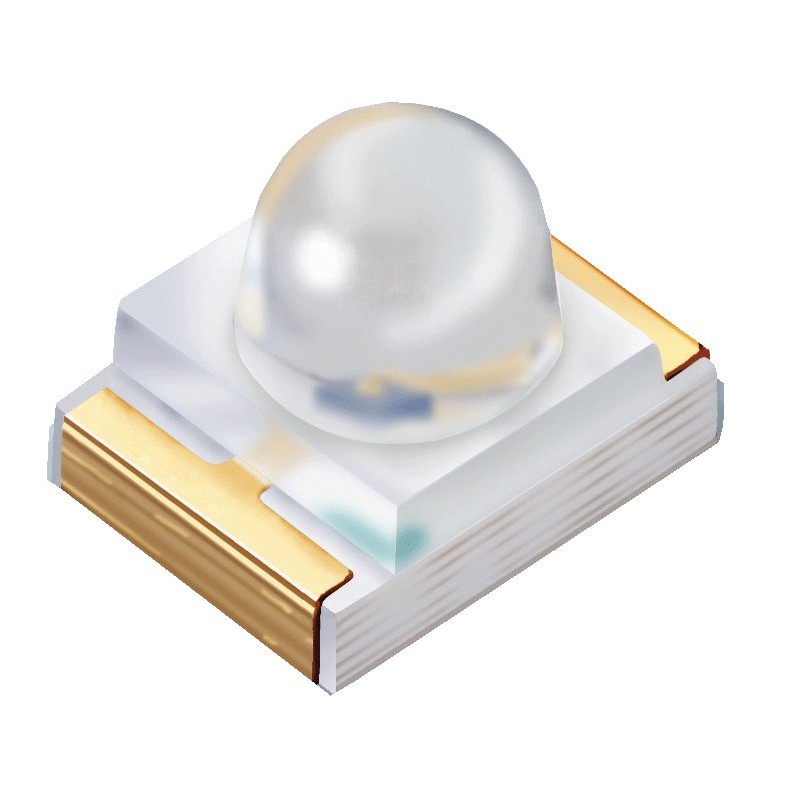

PIR42-21C/L415/TR8
$1.08
Tax excluded
Description
This part is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor. .
Features
- Compatible with infrared and vapor phase reflow solder process.
- Low forward voltage
- Good spectral matching to Si photodetector
- Pb free
- The product itself will remain within RoHS compliant version.
Applications
- Infrared Applied System
PIR42-21C/L415/TR8
- Lens Color
- Water Clear
- Forward Current
- 20mA
- Forward Voltage
- 1.95V
- Maximum Voltage
- 2.3V
- Beam Angle
- 30°
- Package
- 3224
- Mounting
- SMD
- Operating Temperature
- -40°C to 85°C
- Storage Temperature
- -40°C to 100°C
- Thickness
- 2.5mm
- Peak Wavelength
- 730nm
- Radiant Intensity
- 7 mW/sr
