EAISV3027A0

$0.45
Tax excluded
Quantity

Description

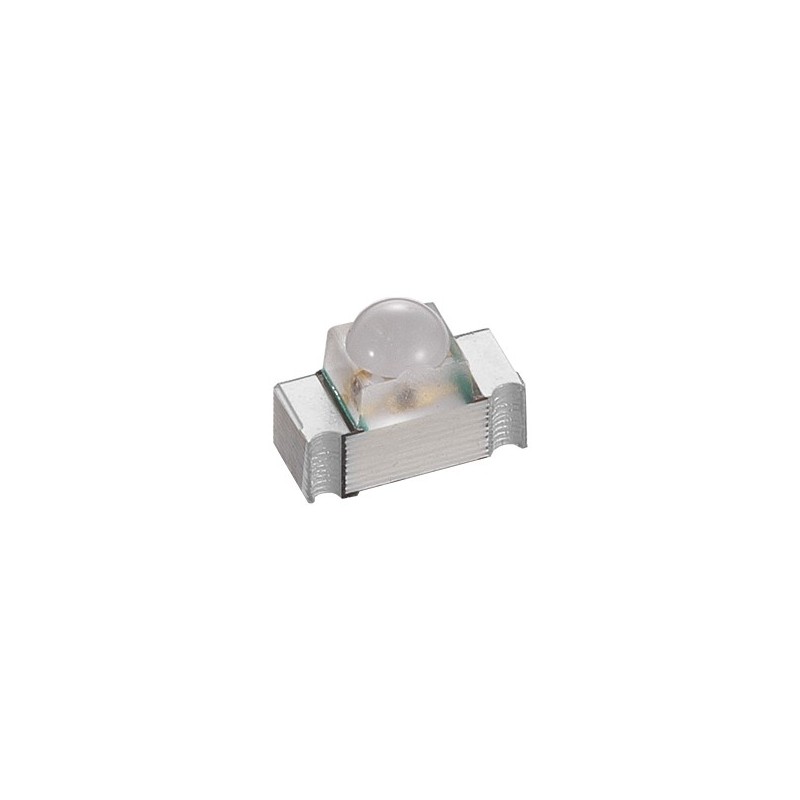

IR29-01C/L510/R/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • Small double-end package Low forward voltage Good spectral matching to Si photo detector Package in 8mm tape on 7〞diameter reel. Pb free The product itself will remain within RoHS compliant version.

Applications

  • Infrared Applied System
EAISV3027A0
400 Items
Forward Current
20mA
Package
3012
Mounting
SMD
Lens Color
Water Clear
Thickness
2.65mm
Forward Voltage
1.3V
Maximum Voltage
1.6V
Beam Angle
15°
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
20 mW / sr
