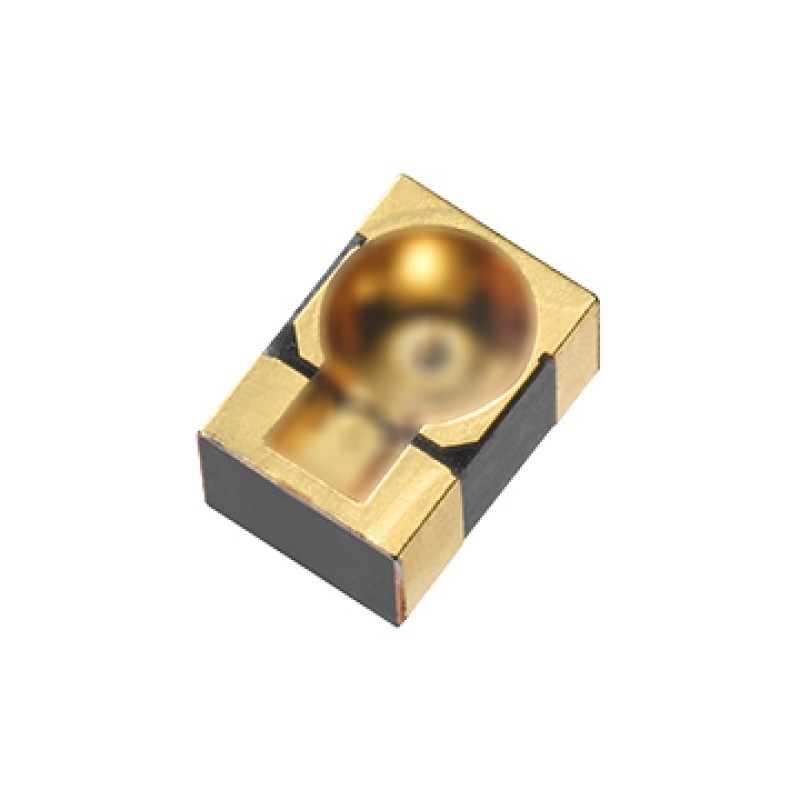

EAIST3122A1
$0.45
Tax excluded
Description
IR89-01C/L447/1R is an infrared emitting diode with miniature MIDLED package. The device is spectrally matched with silicon photodiode and phototransistor.
Features
- Low forward voltage. View angle 30°(Typ.) Pb free The product itself will remain within RoHS compliant version. Compatible with infrared and vapor phase reflow solder process.
Applications
- Infrared Applied System
EAIST3122A1
400 Items
- Forward Current
- 70mA
- Package
- 3122
- Mounting
- SMD
- Lens Color
- Water Clear
- Thickness
- 1.6mm
- Forward Voltage
- 1.75V
- Maximum Voltage
- 2.2V
- Pulsed Forward Current
- 800mA
- Beam Angle
- 30°
- Operating Temperature
- -40°C to 100°C
- Storage Temperature
- -40°C to 100°C
- Peak Wavelength
- 940nm
- Radiant Intensity
- 40 mW / sr
