EAISZ2120A0

$0.45
Tax excluded
Quantity

Description

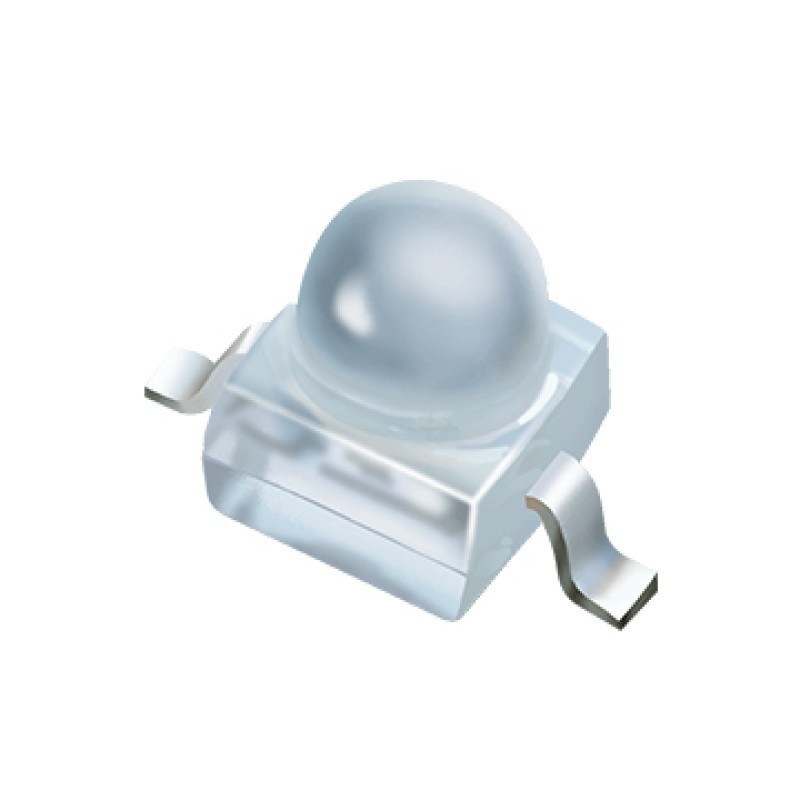

IR95-21C/L491/TR10 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • Small double-end package High reliability Low forward voltage Good spectral matching to Si photodetector Pb free The product itself will remain within RoHS compliant version. Compliance with EU REACH. Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications

  • Pcb Mounted Infrared Sensor Infrared Emitting For Miniature Light Barrier Floppy Disk Drive Optoelectronic Switch Smoke Detector
EAISZ2120A0
56 Items
Package
2120
Lens Color
Water Clear
Mounting
SMD Zbend
Thickness
2.7mm
Forward Current
20mA
Forward Voltage
1.5V
Maximum Voltage
1.5V
Pulsed Forward Current
1000mA
Beam Angle
20°
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
20 mW / sr
