EAIST3216A2

$0.45
Tax excluded
Quantity

Description

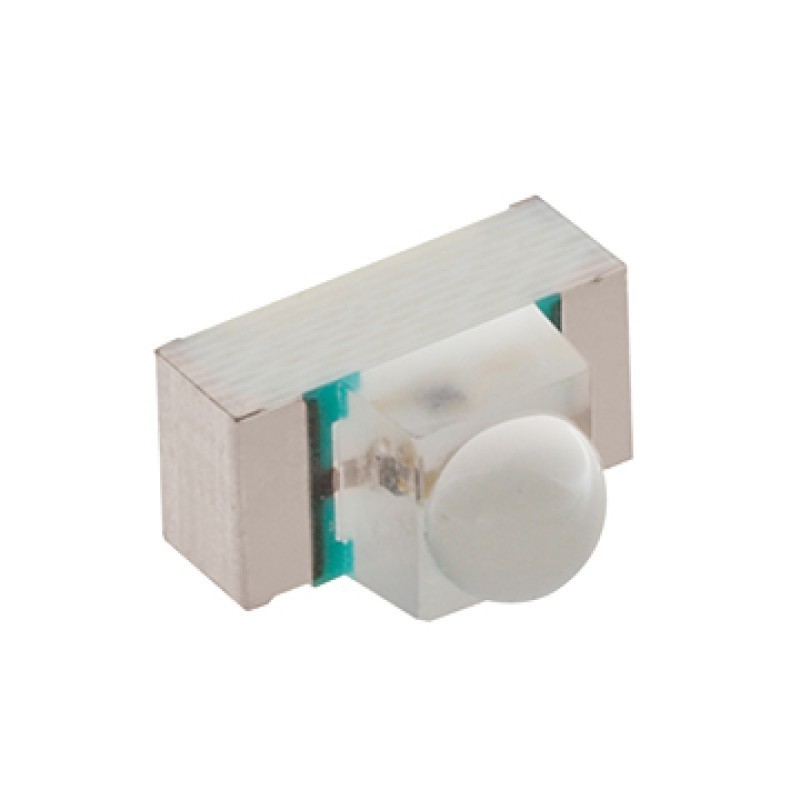

IR26-51C/L110/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor.

Features

  • Small double-end package Low forward voltage Good spectral matching to Si photo detector Package in 8mm tape on 7〞diameter reel. Pb free The product itself will remain within RoHS compliant version. Compliance with EU REACH. Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)

Applications

  • Pcb Mounted Infrared Sensor Infrared Emitting For Miniature Light Barrier Floppy Disk Drive Optoelectronic Switch Smoke Detector
EAIST3216A2
178 Items
Forward Current
20mA
Package
1206
Mounting
SMD
Lens Color
Water Clear
Thickness
2.6mm
Forward Voltage
1.5V
Maximum Voltage
1.5V
Beam Angle
20°
Operating Temperature
-25°C to 85°C
Storage Temperature
-40°C to 100°C
Peak Wavelength
940nm
Radiant Intensity
2 mW / sr
