ALS-PDIC17-77B/TR8

$0.38
Tax excluded

Description

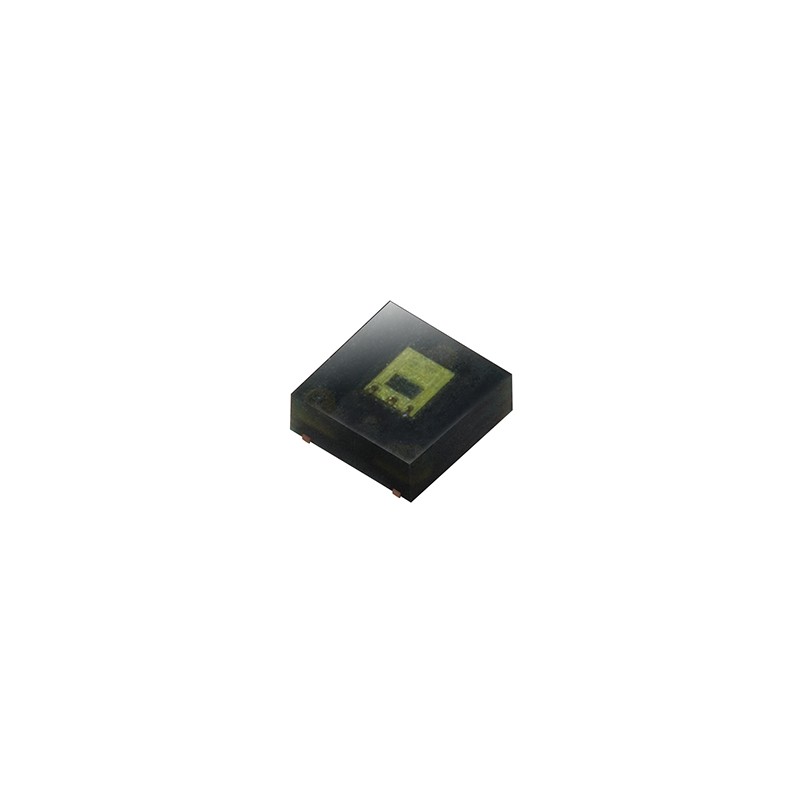

The ALS-PDIC17-77B/TR8 is consisting of a photodiode and a current amplification IC. EVERLIGHT ALS series product is a good effective solution to the power saving of display backlighting of mobile appliances, such as the mobile phones, NB and PDAs. Due to the high rejection ratio of infrared radiation, the spectral response of the ambient light sensor is close to that of human eyes.

Features

  • Close responsively to the human eye spectrum Light to Current, analog output Good output linearity across wide illumination range Low sensitivity variation across various light sources Operating temperature performance, -40 to 85 ℃ ℃ Wide supply voltage range, 1.8V to 5.5V Size : 1.6mm(L)*1.6mm(W)*0.55mm(H) RoHS compliant, Pb Free and halogen free package Compliance with EU REACH.

Applications

  • Detection Of Ambi...
ALS-PDIC17-77B/TR8
Maximum Voltage
5.5V
Package
1616
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Thickness
0.55mm
Peak Wavelength
580nm
