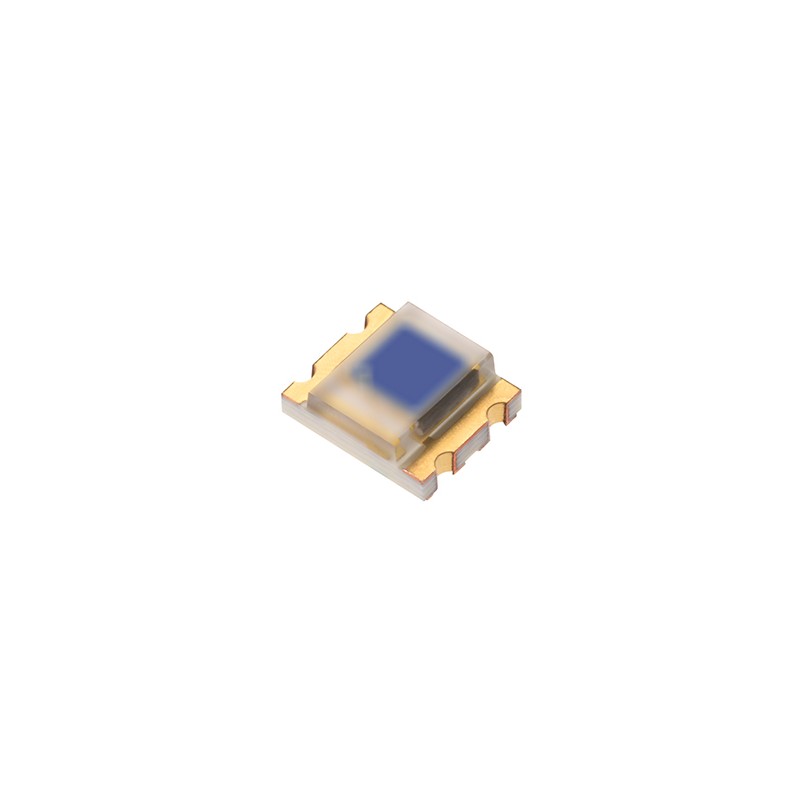

CLS15-22C/L213B/TR8

$0.60
Tax excluded

Features

  • Surface-mount plastic package
  • High sensitivity for Red, Green, and Blue light source CLS15-22C/L213R/TR8 (λp= 620nm, Red) CLS15-22C/L213G/TR8 (λp= 550nm, Green) CLS15-22C/L213B/TR8 (λp= 470nm, Blue)
  • Good stable analog output with temperature shift
  • Size: 3.2mm (L)*2.7mm (W)*1.1mm (H)
  • Operating temperature performance, -40oC to 85oC
  • Active area: 1.8 mm2
  • The product itself will remain within RoHS compliant version
  • Compliance with EU REACH
  • Compliance Halogen Free(Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm)

Applications

  • Color Adjustment For Led Back Light System
  • Color Adjustment For Led Projector
  • Color Detection
  • White Balance Adjustment
  • Consumer And Mobile Appliances
CLS15-22C/L213B/TR8
Forward Current
10mA
Maximum Voltage
1.3V
Package
3227
Peak Wavelength
470nm
