ALS-PDIC15-21C/L230/TR8

$2.50
Tax excluded

Description

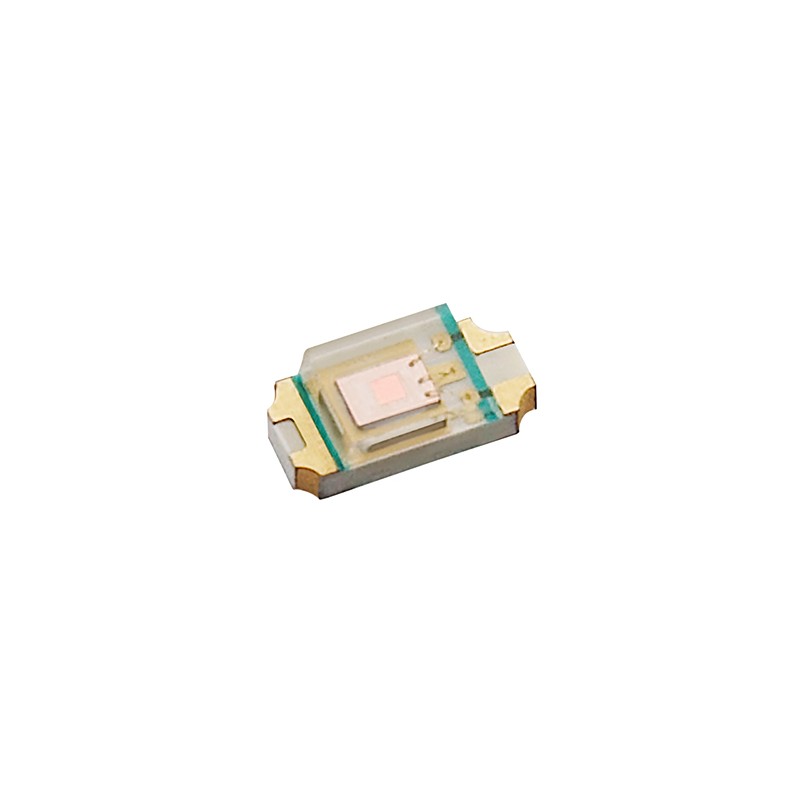

ALS-PDIC15-21C/L230/TR8 Ambient Light Sensor Device, which incorporates a photodiode and a current amplifier IC in a single chip, is a good effective solution to the power saving of display backlighting of mobile appliances, such as the mobile phones and PDAs. Due to the high rejection ratio of infrared radiation, the spectral response of the ambient light sensor is close to human eyes.

Features

  • Close responsively to the human eye spectrum Light to Current, analog output Good output linearity across wide illumination range Low sensitivity variation across various light sources Operating temperature performance, -40oC to 85oC Wide supply voltage range, 2.5V to 5.5V Size : 3.2mm(L)*1.5mm(W)*1.05mm(H) RoHS compliant and Pb Free package Compliance with EU REACH.

Applications

  • Detection Of Ambient Light ...
ALS-PDIC15-21C/L230/TR8
Maximum Voltage
5.5V
Package
1206
Mounting
SMD
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 100°C
Thickness
1.05mm
Peak Wavelength
590nm
