EAST1616RGBA1

$0.19
Tax excluded
Quantity

Description

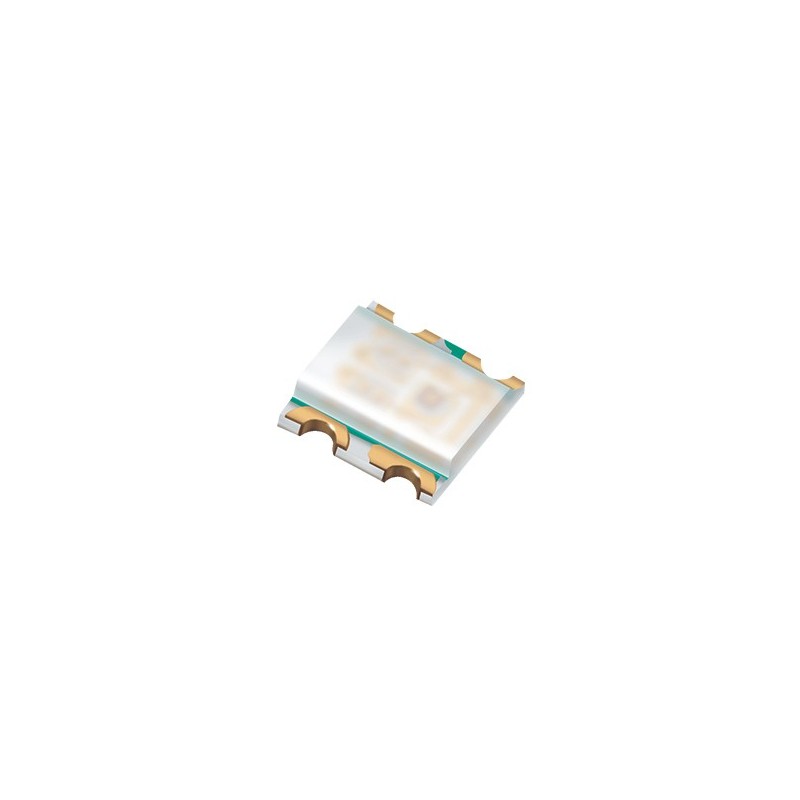

The 19-237B SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Besides, lightweight makes them ideal for miniature applications. etc.

Features

  • Package in 8mm tape on 7?diameter reel Compatible with automatic placement equipment Compatible with infrared and vapor phase

Applications

  • Backlighting In Dashboard And Switch.
  • Telecommunication: Indicator And Backlighting In Telephone And Fax.
  • Flat Backlight For Lcd, Switch And Symbol.
  • General Use.
EAST1616RGBA1
275 Items
Forward Current
5mA
Color
Red / Green / Blue
Mounting
SMD
Lens Color
Water Clear
Thickness
0.35mm
Luminous Intensity
18 / 28.5 / 11.5mcd
Forward Voltage
1.7 / 2.6 / 2.6V
Maximum Voltage
2.2 / 3.3 / 3.3V
Pulsed Forward Current
60 / 100 / 100mA
Beam Angle
120°
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 90°C
Emission Direction
TopView
