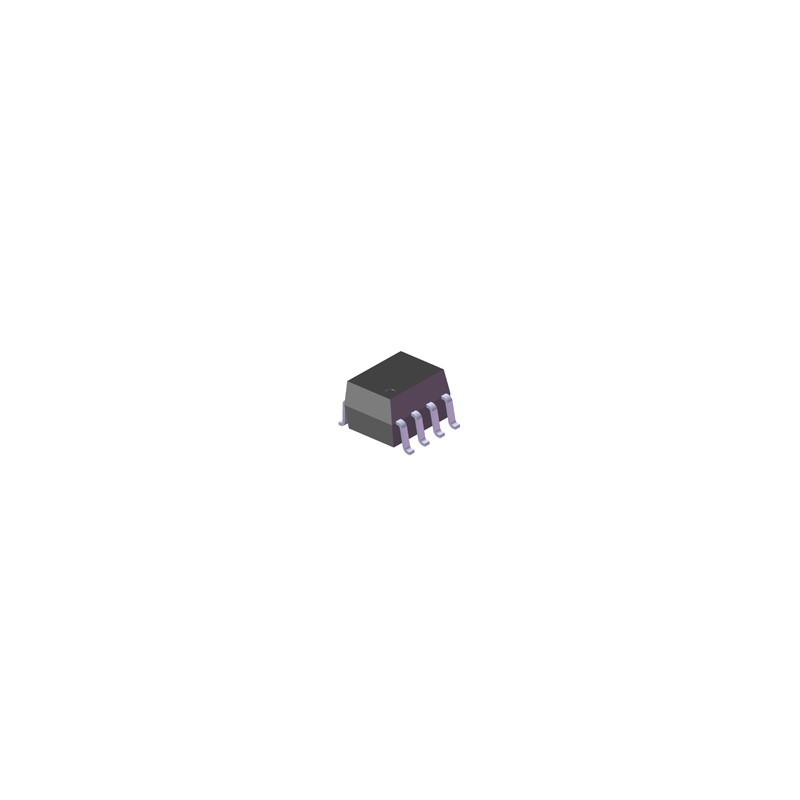

Part Number: ELD211(TA)
8-Pin Optocoupler - Phototransistor
- Description: Photocoupler - Phototransistor
Features:
Fast response
High photo sensitivity
Surface Mount Device
Applications:
Consumer, IR Touch-Panel, Industrial equipment , Other Infrared applicatio
| Number of Channels | Dual |
| Packaging | Tape & Reel |
| Package | 8-Pin SOP |
| Number of Pins | Quad |
| Mounting | SMD |
| Min. Storage Temp. | -55C |
| Min. Operating Temp. | -55C |
| Min. Isolation Voltage | 3750V |
| Width | 4.88mm |
| Height | 3.18mm |
| Max. Forward current | 60mA |
| Length | 3.92mm |
| Min. CTR | 20% |
| Max. Storage Temp. | 125C |
| Max. Saturation Voltage Vce | 0.4V |
| Max. Power Dissipation | 250mW |
| Max. Operating Temp. | 110C |
