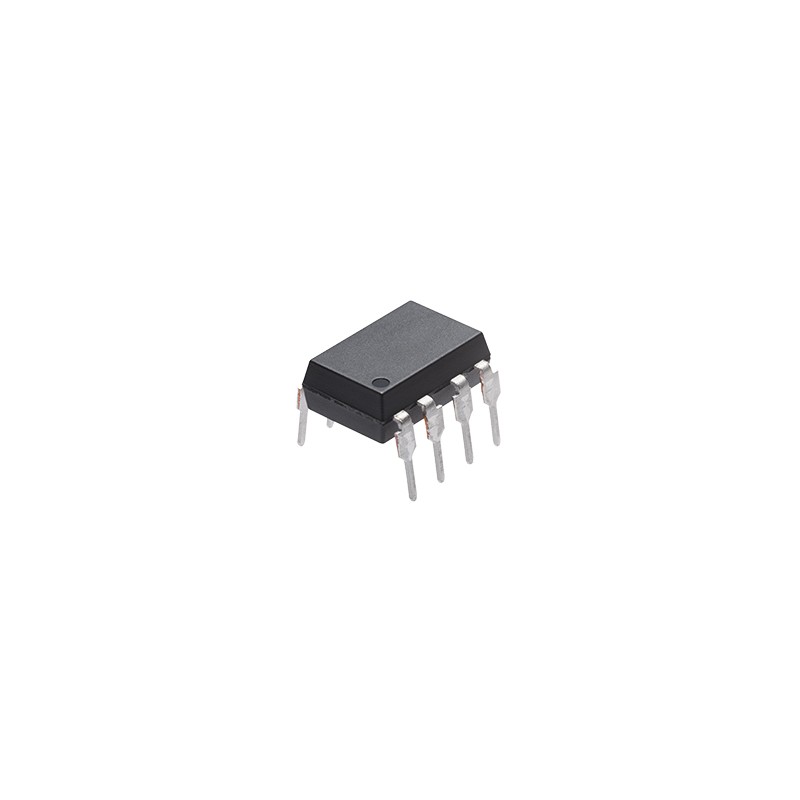

EL840A

$2.00
Tax excluded

Description

The EL840A(D)and EL860A(D) are solid state relays containing an AlGaAs infrared LEDs on the light emitting side input side) optically coupled to a high voltage output detector circuit. The detector consists of a photovoltaic diode array and MOSFETs on the output side. The dual channel configuration is equivalent to 1 form A EMR. They are packaged in 8 pin DIP and available in surface mount SMD option.

Features

  • Compact 8-pin DIP size
  • Applicable for 2 Form A use as well as two independent 1Form A use
  • Controls low-level analog signals
  • High sensitivity and high speed response
  • Low-level off state leakage current of max. 1uA
  • Wide operating temperature range of -40°C to 85°C
  • High isolation voltage between input and output (Viso = 5000 Vrms)
  • UL 1577 + cUL approved (No. E214129)
  • VDE approved (No. 40028391)
EL840A
Forward Current
10mA
Maximum Voltage
1.5V
Package
8 Pin DIP-DC
Isolation Voltage
5000Vrms
