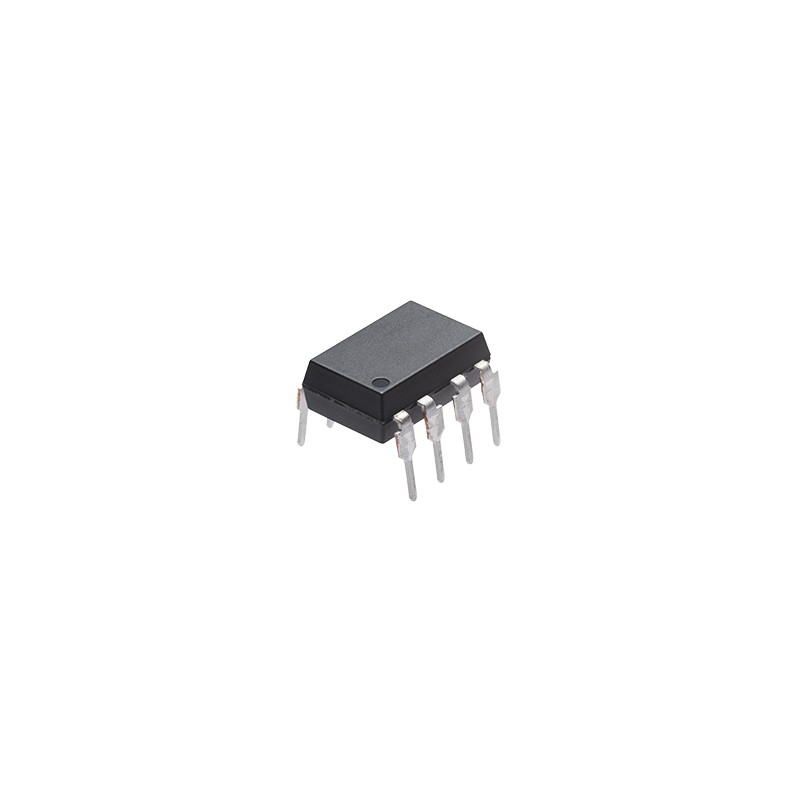

EL2630

$1.69
Tax excluded

Description

The EL2630 and EL2631 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. It is packaged in a 8-pin DIP package and available in wide-lead spacing and SMD options.

Features

  • High speed 10Mbit/s
  • 10kV/Ξs min. common mode transient immunity (EL2631)
  • Guaranteed performance from -40 to 85℃
  • Logic gate output
  • High isolation voltage between input and output (Viso=5000 Vrms )
  • Pb free and RoHS compliant.
  • UL and cUL approved(No. E214129)
  • VDE approved (No. 132249)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved

Applications

  • Ground Loop Elimination
  • Lsttl To Ttl, Lsttl Or 5 Volt Cmos
  • Line Receiver, Da...
EL2630
Forward Current
10mA
Maximum Voltage
1.8V
Package
8 Pin DIP-DC
Isolation Voltage
5000Vrms
