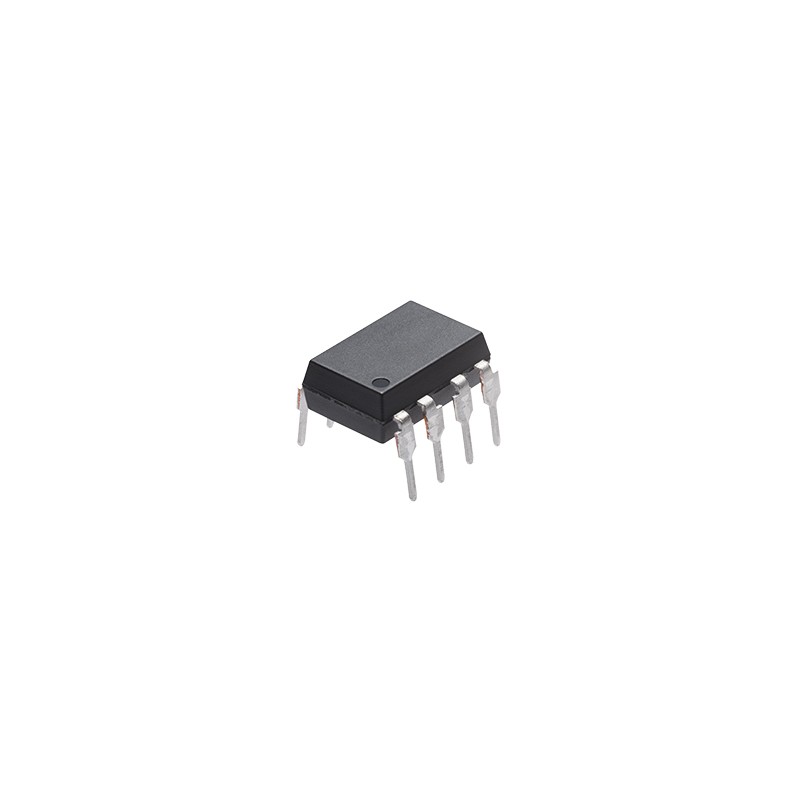

EL0501(TA)

$1.14
Tax excluded

Description

The EL0500, EL0501, EL0452 and EL0453 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventional phototransistor couplers by reducing the base-collector capacitance of the input transistor. The devices are packaged in an 8-pin small outline package which conforms to the standard SO-8 footprint.

Features

  • Compliance Halogen Free (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
  • High speed 1Mbit/s
  • 15kV/μs minimum commone mode transient immunity at VCM= 1500V (EL0453)
  • High isolation voltage between input and output (Viso=3750 Vrms )
  • Guaranteed performance from 0°C to 70°C
  • Wide operating temperature range of -55°C to 100°C
  • Compliance w...
EL0501(TA)
Forward Current
16mA
Maximum Voltage
1.8V
Package
8 Pin DIP-DC
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
19
