PT26-61B/TR8
$0.40
Tax excluded
Description

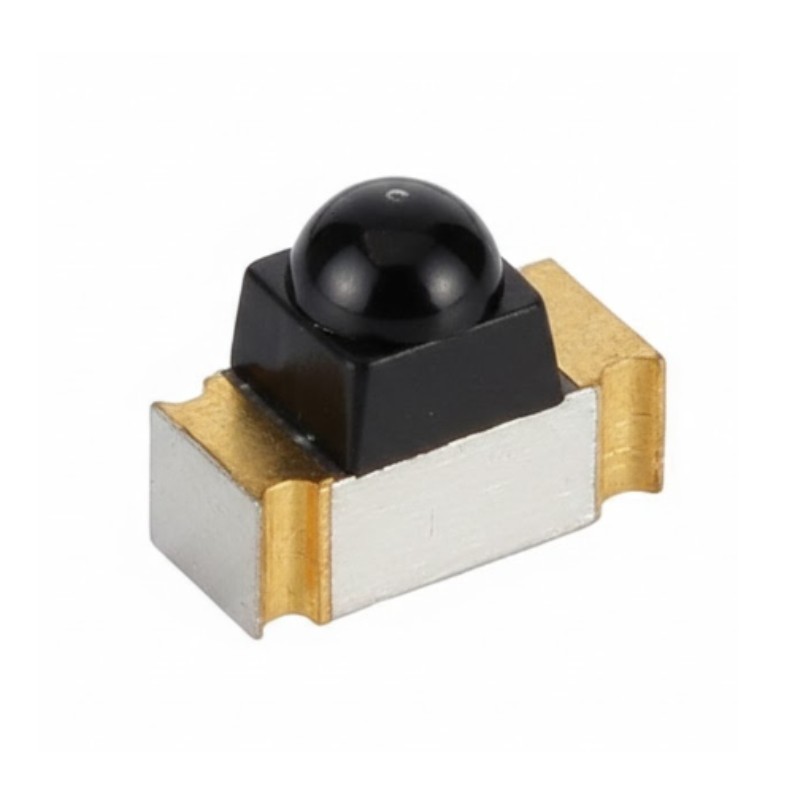

PT26-61B/TR8 is a phototransistor in miniature SMD package which is molded in a black with spherical top view lens. The device is Spectrally matched to infrared emitting diode.
Features
- Fast response time
- High photo sensitivity
- Small junction capacitance
- Package in 8mm tape on 7” diameter reels.
- Pb free
- The product itself will remain within RoHS compliant version.
Applications
- Miniature Switch
- Counters And Sorter
- Position Sensor
- Infrared Applied System
PT26-61B/TR8
- Lens Color
- Black
- Package
- 3012
- Mounting
- SMD
- Operating Temperature
- -25°C to 85°C
- Storage Temperature
- -40°C to 85°C
- Thickness
- 1.2mm
- Rise/Fall Time
- 15000 / 15000 ns
- Saturation Voltage
- 0.4V
