ELR0223

$1.50
Tax excluded

Description

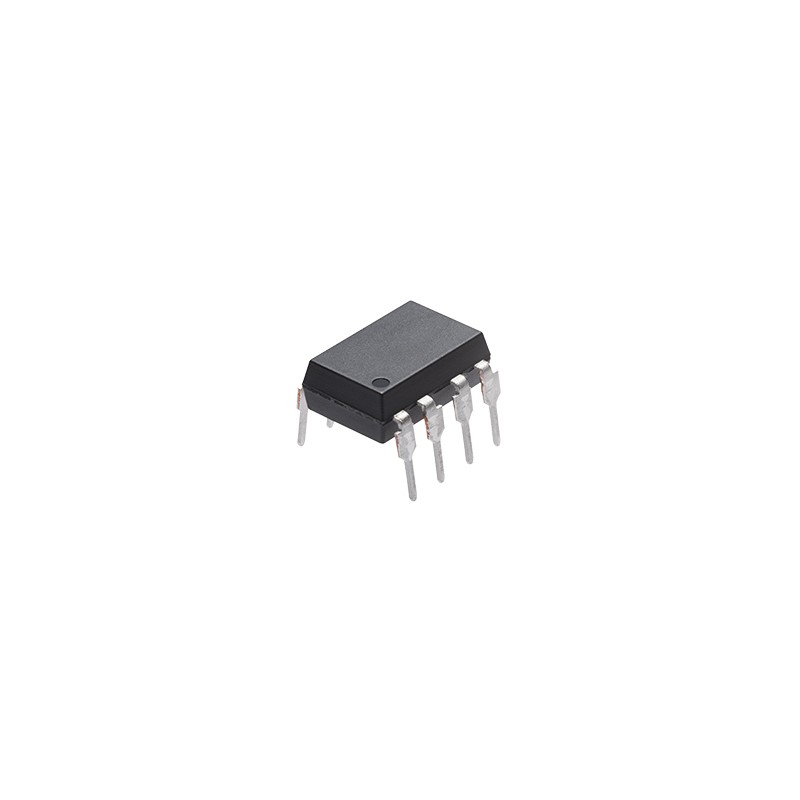

The ELRX223 series of devices are each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo triac and a main output triac. They are designed for interfacing between electronic controls and loads to control inductive for 115 to 240 VAC operations. They are packaged in 8pin DIP package and available in surface mount SMD option.

Features

  • Low trigger current IFT 10mA
  • Peak off state voltage 600V
  • Load current 0.3，0.6，0.9，1.2A
  • Wide operating temperature range of -40°C to 85°C
  • High isolation voltage between input and output (Viso=5000 Vrms)
  • Pb free and RoHS compliant
  • UL and cUL approved(No. E214129)
  • VDE approved (No. 40028391)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved
  • CQC approved
ELR0223
Forward Current
20mA
Maximum Voltage
1.4V
Package
7 Pin DIP
Isolation Voltage
5000Vrms
