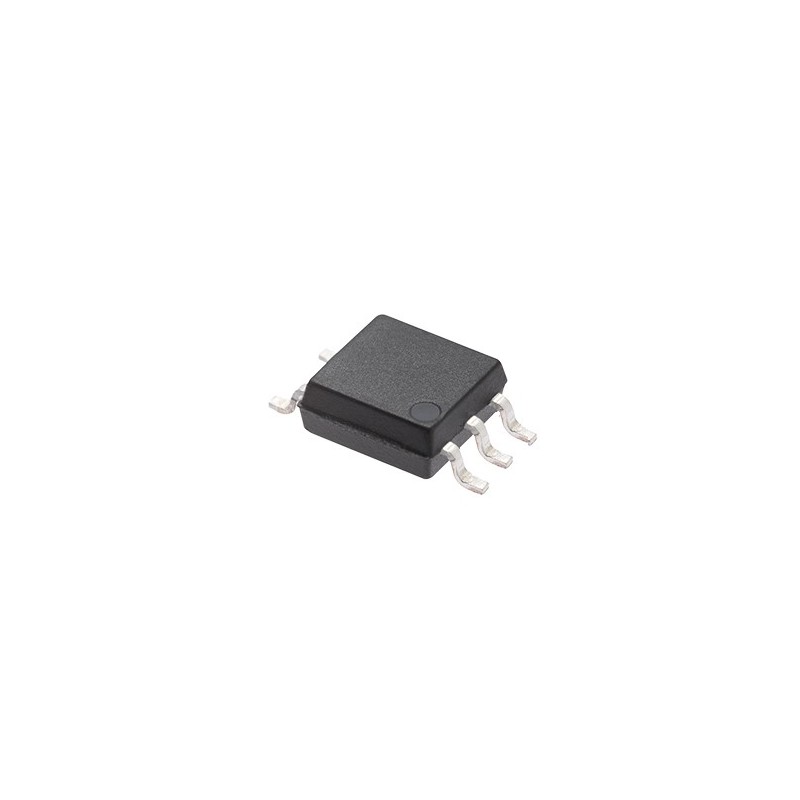

ELM453(TA)-V

$1.31
Tax excluded

Description

The ELM452 and ELM453 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventional phototransistor couplers by reducing the base-collector capacitance of the input transistor. The devices are packaged in industry standard 5pin SOP packages and are suitable for surface mounting.

Features

  • Compliance Halogen Free . (Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
  • Pb free and RoHS compliant
  • Compliance with EU REACH
  • High isolation voltage between input and output (Viso=3750 Vrms )
  • High speed 1Mbit/s
  • High CMR 15KV/us at VCM=1500V (ELM453)
  • Wide operating temperature range of -40°C to 85°C
  • UL and cUL approved
  • VDE approved...
ELM453(TA)-V
Forward Current
16mA
Maximum Voltage
1.8V
Package
5 Pin SOP-DC
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
20
