ELD211(TA)

$0.45
Tax excluded

Description

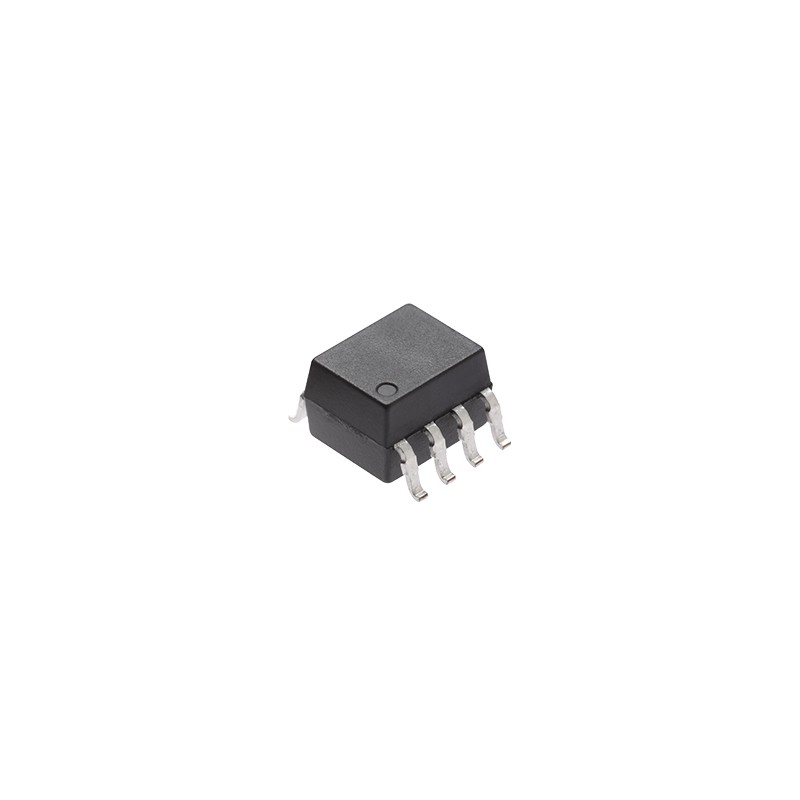

The ELD20X and ELD21X series contain two infrared emitting diodes optically coupled to two phototransistor detectors. The devices are packaged in an 8-pin small outline package which conforms to the standard SO-8 footprint.

Applications

  • Feedback Control Circuits
  • Interfacing And Coupling Systems Of Different Potentials And Impedances
  • General Purpose Switching Circuits
  • Monitor And Detection Circuits
ELD211(TA)
Forward Current
10mA
Maximum Voltage
1.5V
Package
8 Pin SOP-DC
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
20
