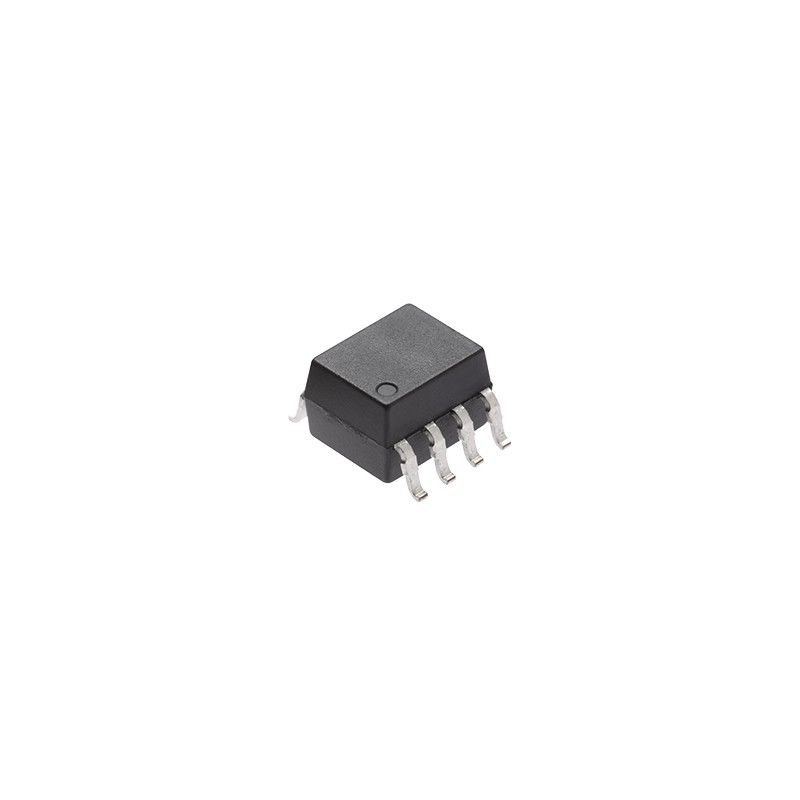

ELD213(TA)

$0.65
Tax excluded

Description

The ELD20X and ELD21X series contain two infrared emitting diodes optically coupled to two phototransistor detectors. The devices are packaged in an 8-pin small outline package which conforms to the standard SO-8 footprint.

Features

  • Dual channel coupler
  • Current transfer ratios offered in narrow ranges
  • ELD205: 40-80% ELD211: >20%
  • ELD206: 63-125% ELD213: >100%
  • ELD207: 100-200% ELD217: >100%
  • High isolation voltage between input and output
  • Viso = 3750 Vrms
  • Operating temperature range of -55 to +110℃
  • High BVceo of 80V
  • Standard SO-8 footprint package
  • Pb free and RoHS compliant.
  • UL approved (No. E214129)
  • VDE approval (No. 40028116)
  • SEMKO approved
  • NEMKO approved
  • DEMKO approved
  • FIMKO approved
  • CSA approved (No. 2007189) <...
ELD213(TA)
Forward Current
10mA
Maximum Voltage
1.5V
Package
8 Pin SOP-DC
Mounting
SMD
Operating Temperature
-55°C to 110°C
Storage Temperature
-55°C to 125°C
Isolation Voltage
3750Vrms
CTR (Current Transfer Ratio)
100
Number of Pins
Quad
